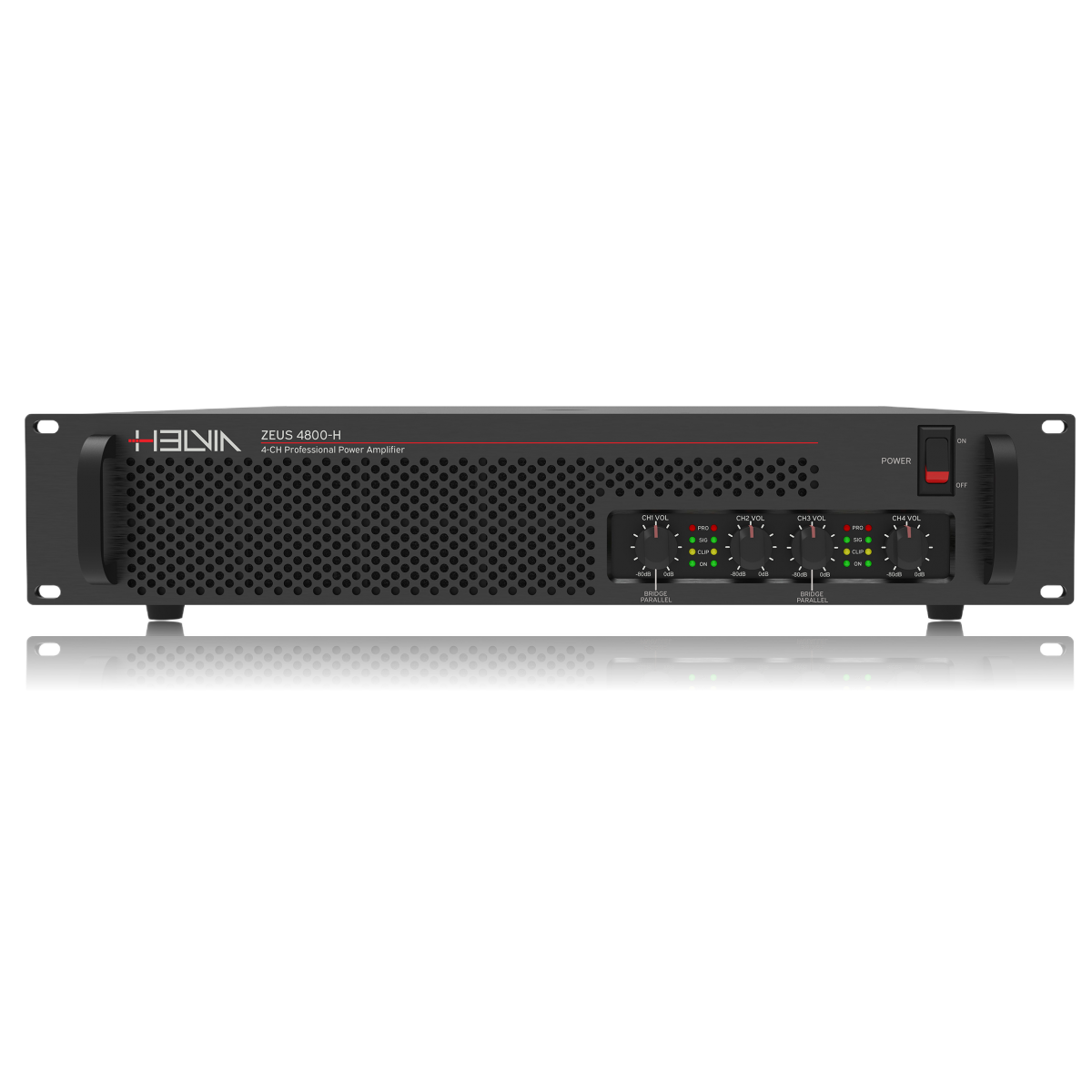

ZEUS 4800-H
Description
The ZEUS-H series 4-channel amplifiers are designed to offer reliability and robustness for both portable systems and fixed installations.
Class H technology guarantees audio quality and moderate power consumption compared to other amplifier classes.
The difference compared to similar systems lies in the careful attention paid to the quality of the component... Read more
The ZEUS-H series 4-channel amplifiers are designed to offer reliability and robustness for both portable systems and fixed installations.
Class H technology guarantees audio quality and moderate power consumption compared to other amplifier classes.
The difference compared to similar systems lies in the careful attention paid to the quality of the components (toroidal transformers, electrolytic capacitors, transistors, and others) and the effectiveness of the protections and limiter, all with a view to robustness, durability, and protection of both the internal circuitry and the speakers they drive.
Read lessHighlights
Product details
| Stereo/parallel/bridged-mono Modes | |
| Intelligent Cooling System | |
| 2x 19” Rack Unit Chassis Design | |
| Class-H traditional and reliable circuitry | |
| High-quality transformers and components | |
| Thermal, Short Circuit and Signal Protection | |
| Soft Start Function |
| Stereo Rated Output Power (THD=0.5%, 1kHz, both channels driven) | 4 x 800W @ 8Ω, 4 x 1050W @ 4Ω |
| Bridged output power | 2 x 2100W @ 8Ω, 2 x 2900W @ 4Ω |
| Input Sensitivity | 0.775V / 1.0V / 1.4V |
| Input Impedance | 20kΩ / 10kΩ |
| Frequency Response | 20Hz - 20kHz |
| Damping Factor | 500:1 (@ 1kHz) |
| S/N Ratio | A weighted |
| Amplifier Class | H |
| Power Requirements | 220-240Vac - 50/60Hz |
| Power Consumption (average / max) | 12A / 25A |
| Dimensions (WxDxH) | 483 x 518 x 100 mm (19.0 x 20.4 x 3.9 in) |
| Packing Size (WxDxH) | 555 x 605 x 180 mm (21.8 x 23.8 x 7.1 in) |
| Height | 2 x 19” Rack Unit |
| Unit Weight | 24.7 kg – 54.4 lbs. |
| Carton Weight | 26.2 kg – 57.8 lbs. |
