SONIX PHDMI2
Description

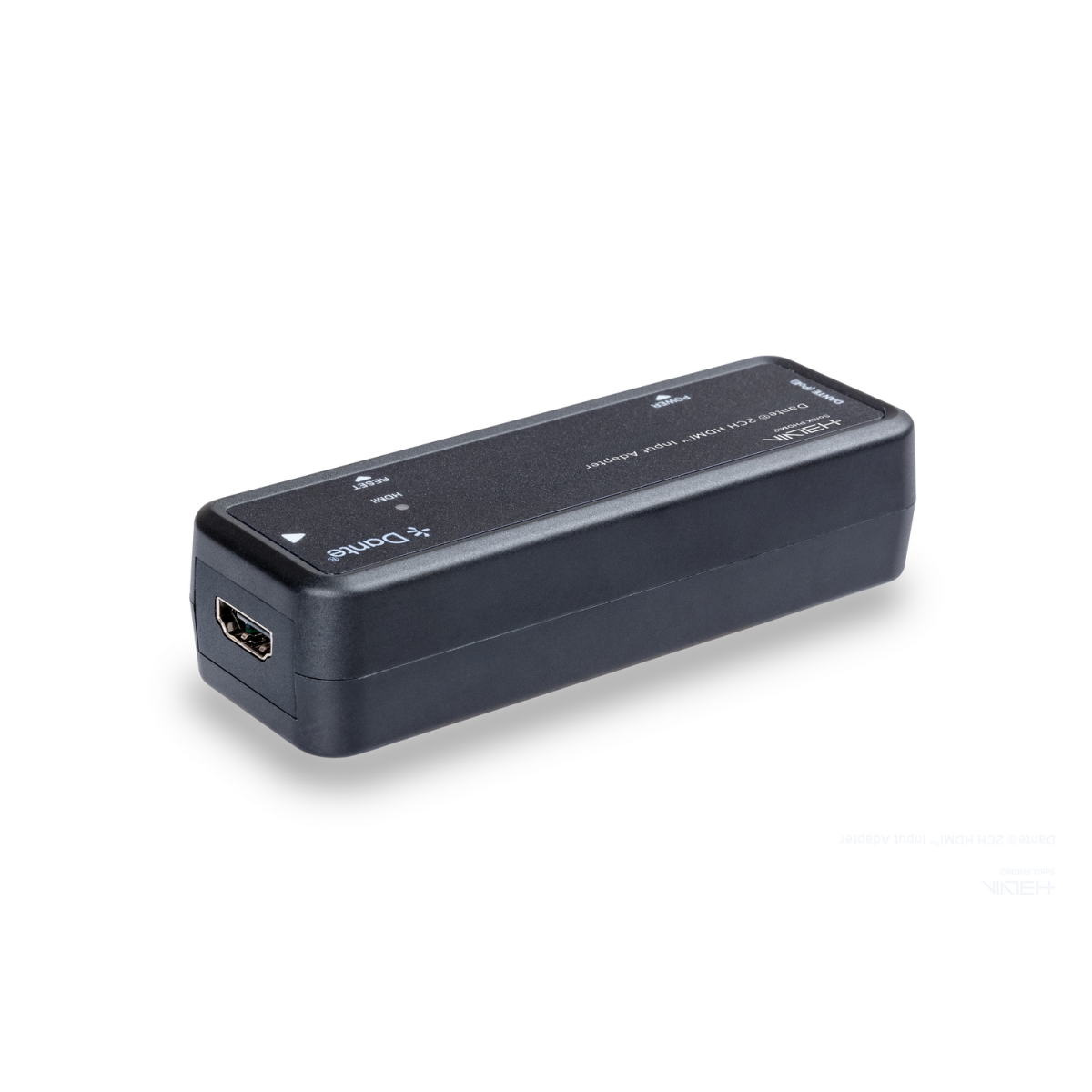

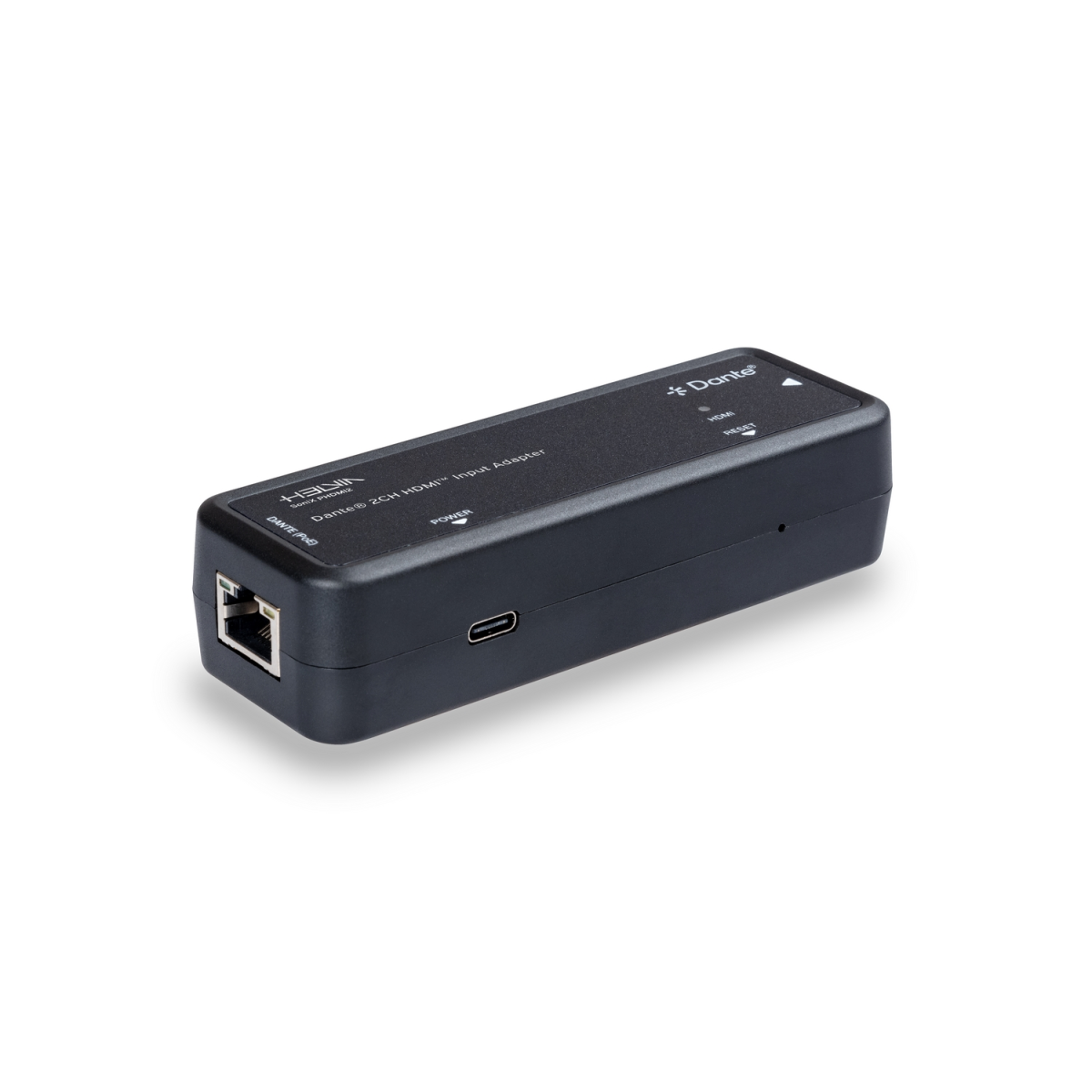

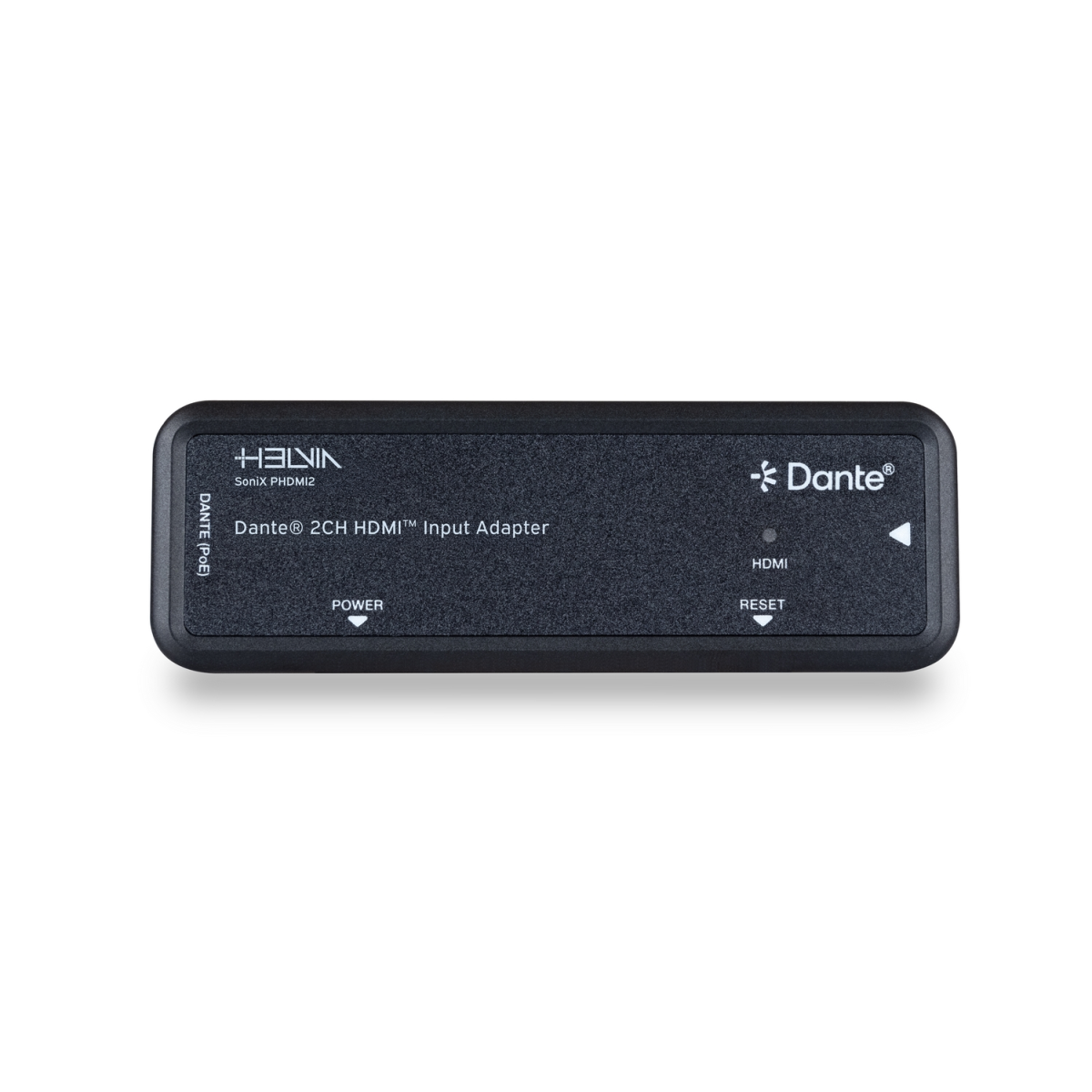

The Dante® 2CH HDMI™ Input Adapter is a compact, ultra-lightweight audio converter built on the robust Dante® Ultimo 2x2 platform. Designed for seamless audio integration, it de-embeds two-channel digital HDMI™ audio and converts it into a high-fidelity Dante® digital audio stream, transmitting it flawlessly over standard IP networks.
Featuring advanced audio... Read more
The Dante® 2CH HDMI™ Input Adapter is a compact, ultra-lightweight audio converter built on the robust Dante® Ultimo 2x2 platform. Designed for seamless audio integration, it de-embeds two-channel digital HDMI™ audio and converts it into a high-fidelity Dante® digital audio stream, transmitting it flawlessly over standard IP networks.
Featuring advanced audio sampling rate conversion and pure, loss-free digital signal processing, this adapter ensures exceptional sonic performance across both fixed AV installations and demanding live/rental applications—including recording studios, concerts, corporate events, and festivals. For maximum operational flexibility, the device supports dual power redundancy via PoE (Class 0 802.3af) or a local USB-C port. Its plug-and-play architecture, combined with custom EDID management and API control capabilities, makes it an indispensable tool for professional AV technicians and system integrators seeking hassle-free HDMI audio routing into Dante® ecosystems.
Read lessHighlights
Product details
| High-Performance Audio Extraction | Seamlessly converts 2-channel HDMI™ audio into a high-quality Dante® digital audio stream. |
| Flexible Sampling Rate Support | Handles HDMI™ PCM 2CH audio input up to 192kHz/24-bit and outputs pristine Dante® digital audio at 44.1 / 48 / 88.2 / 96kHz @ 24-bit. |
| Ultra-Low & Configurable Latency | Adjustable Dante® device latency options (1ms, 2ms, or 5ms) via Dante® Controller for perfect system synchronization. |
| Dual Powering Options | Supports Power over Ethernet (Class 0 802.3af PoE) for single-cable deployments and local 5V/500mA USB-C power input. |
| AES67 Interoperability | Fully compatible with AES67 standards for broader AoIP network integration. |
| Compact & Rugged Design | Lightweight yet durable housing engineered for effortless mounting in fixed AV racks or live touring setups. |
| Advanced EDID & Serial Control | Integrates a USB-C service port providing API command control, custom EDID loading, and firmware updates. |
| Plug-and-Play Simplicity | Instant setup and operation with minimal configuration required. |
| Input Port | 1x HDMI™ IN [Type A, 19-pin female] |
| Output Port | 1x DANTE [RJ45 connector, PoE] |
| Control / Power Port | 1x POWER [USB-C port, 12-pin female] |
| Reset Button | 1x System Reset Button |
| LED Indicator | 1x HDMI™ LED [Green signal indicator] |
| Control Method | Dante® Controller, API Commands via USB-C |
| Video Network Bandwidth | 100M |
| HDMI Compliance | HDMI™ 2.0b |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 18Gbps |
| Color Depth | 8-bit, 10-bit, 12-bit |
| Color Space | RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 |
| HDR Support | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Input Video Resolutions | All resolutions as specified in HDMI™ 2.0b |
| HDMI Audio Formats | HDMI™ IN [Digital audio input, PCM 2CH 32K–192KHz 16/24bit] |
| Dante® Audio Formats | Dante® OUT [Digital audio output, PCM 2CH 44.1K–96KHz 16/24bit] |
| Frequency Response | 20Hz to 20kHz (± 0dB) |
| Dynamic Range | > 130dB@0dBu, 1kHz A-weighted |
| Audio S/N Ratio | > 130dB@0dBu, 1kHz A-weighted |
| Audio THD+N | < 0.01% at +4dBu, 1kHz |
| Audio Latency | Configurable Dante® device latency (1, 2 or 5ms) / Audio Output Delay < 1ms |
| Transmission Distance | 100m / 328ft (CAT6/6A/7) |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Housing | Plastic Enclosure |
| Color | Black |
| Dimensions (W x D x H) | 115 mm x 40 mm x 28 mm (4.53 in x 1.57 in x 1.10 in) |
| Weight | 0.09 kg (0.20 lbs) |
| Power Supply | USB input |
| Power Consumption | 1.8W (Max) |
