SONIX MWP BK
Description

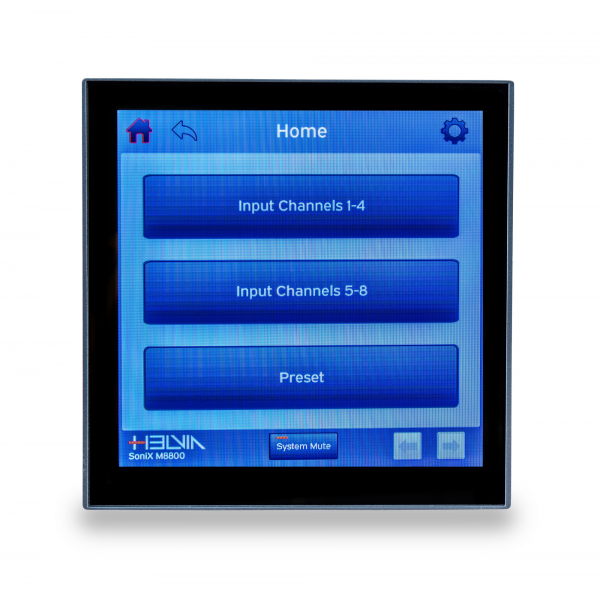

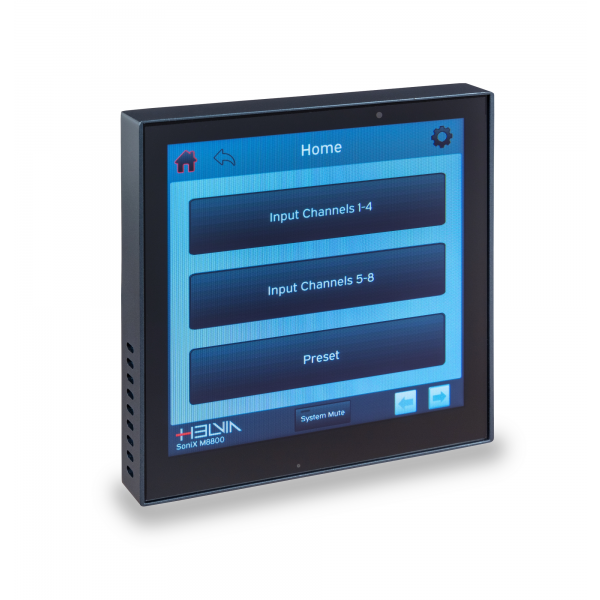

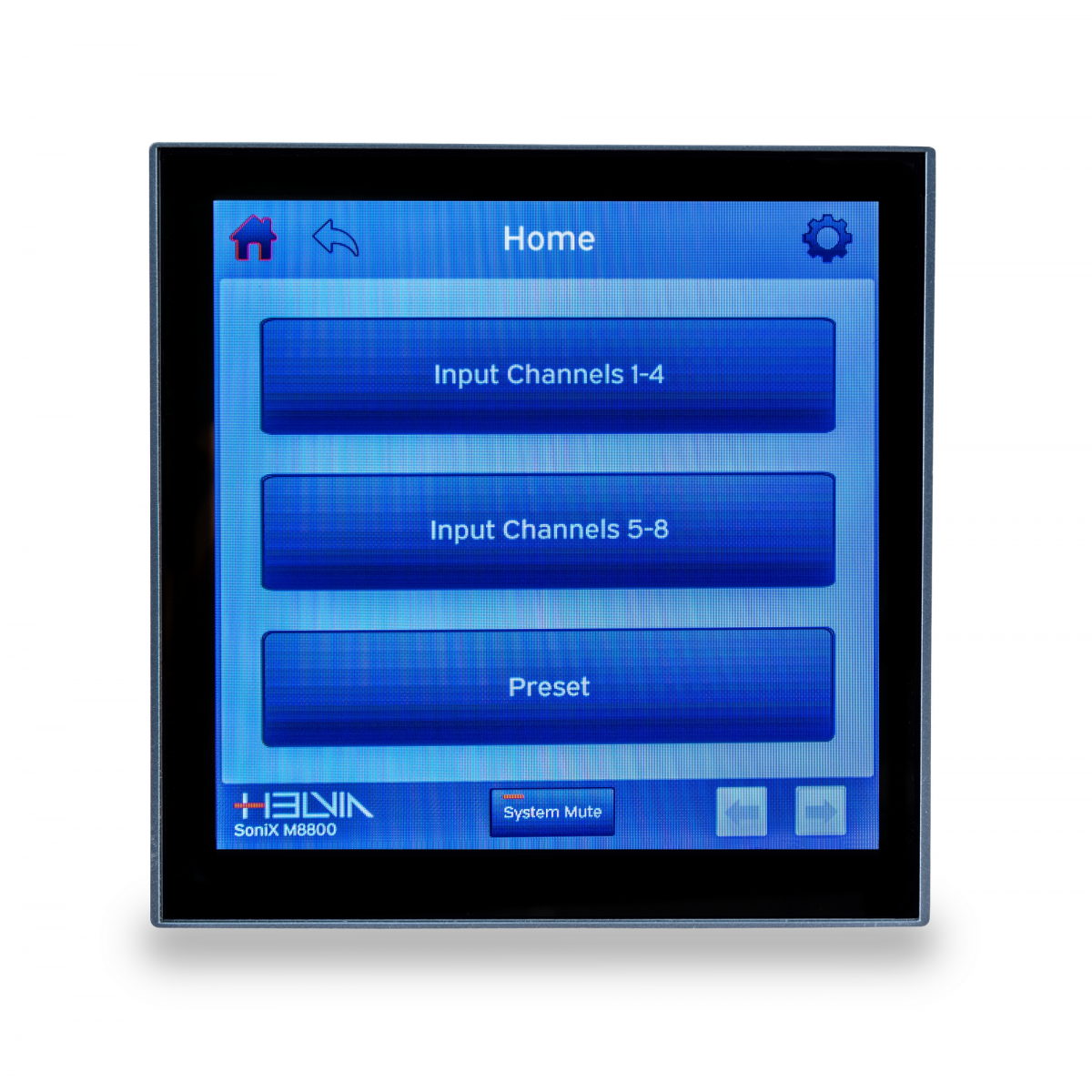

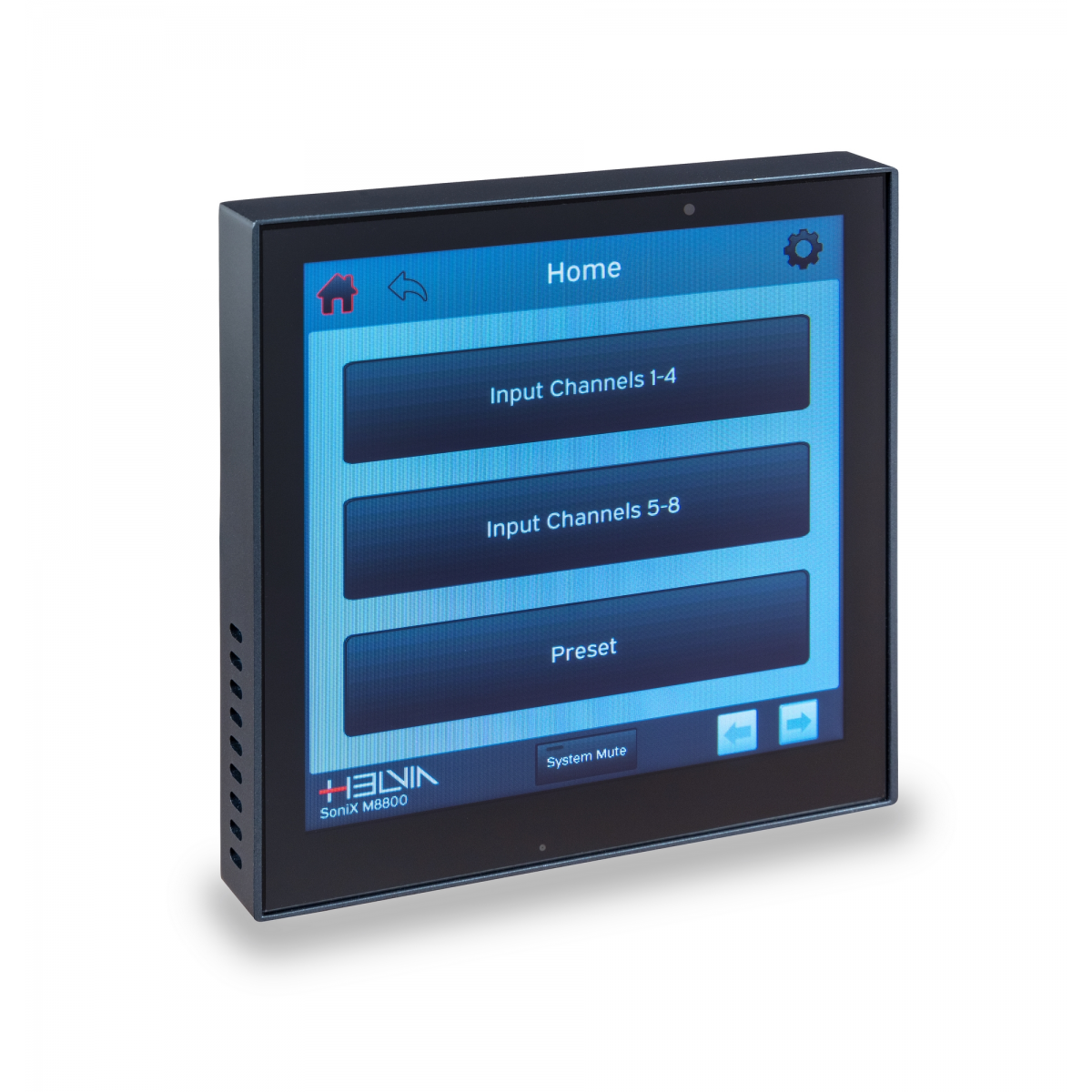

The SoniX MWP is an in-wall control with a 4” color touch screen designed to control input volumes, mutes, and 8 preset recall of the SoniX M8800 matrix. It comes with an external power adapter, all adapter cables to the standard RJ-45 serial connection, and 80x80mm recessed wall box.
The SoniX MWP is an in-wall control with a 4” color touch screen designed to control input volumes, mutes, and 8 preset recall of the SoniX M8800 matrix. It comes with an external power adapter, all adapter cables to the standard RJ-45 serial connection, and 80x80mm recessed wall box.
Highlights
Easy One-Finger Control

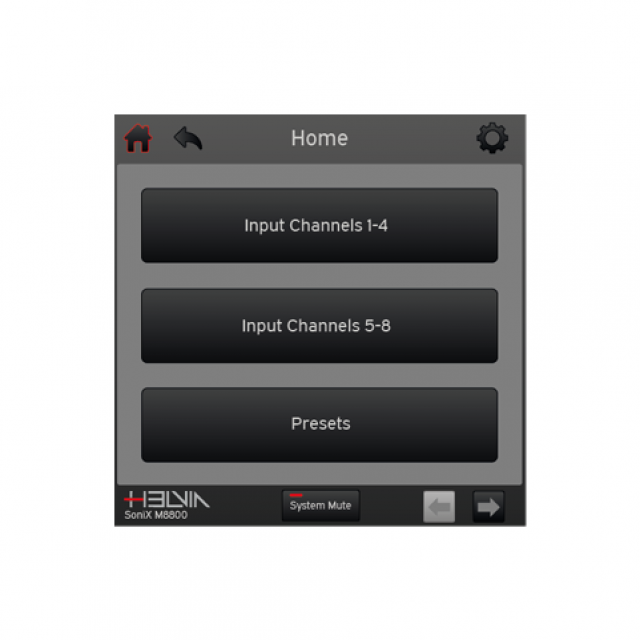

You can instantly control the volume and mute of the 8 inputs, mute the entire system, and recall 8 of the 32 presets available on the SoniX M8800. Each preset can contain all the settings for the 8 inputs and output zones, as well as every control parameter for the numerous processing functions.
Product details
| 4” Touch Screen Wall-Mount Control Panel | |
| Input Volumes, Mutes and 8 Preset recall Remote Functions | |
| Easy to Install with all accessories included |
| Communication Protocol | RS-485 (19200 Baud Rate) |

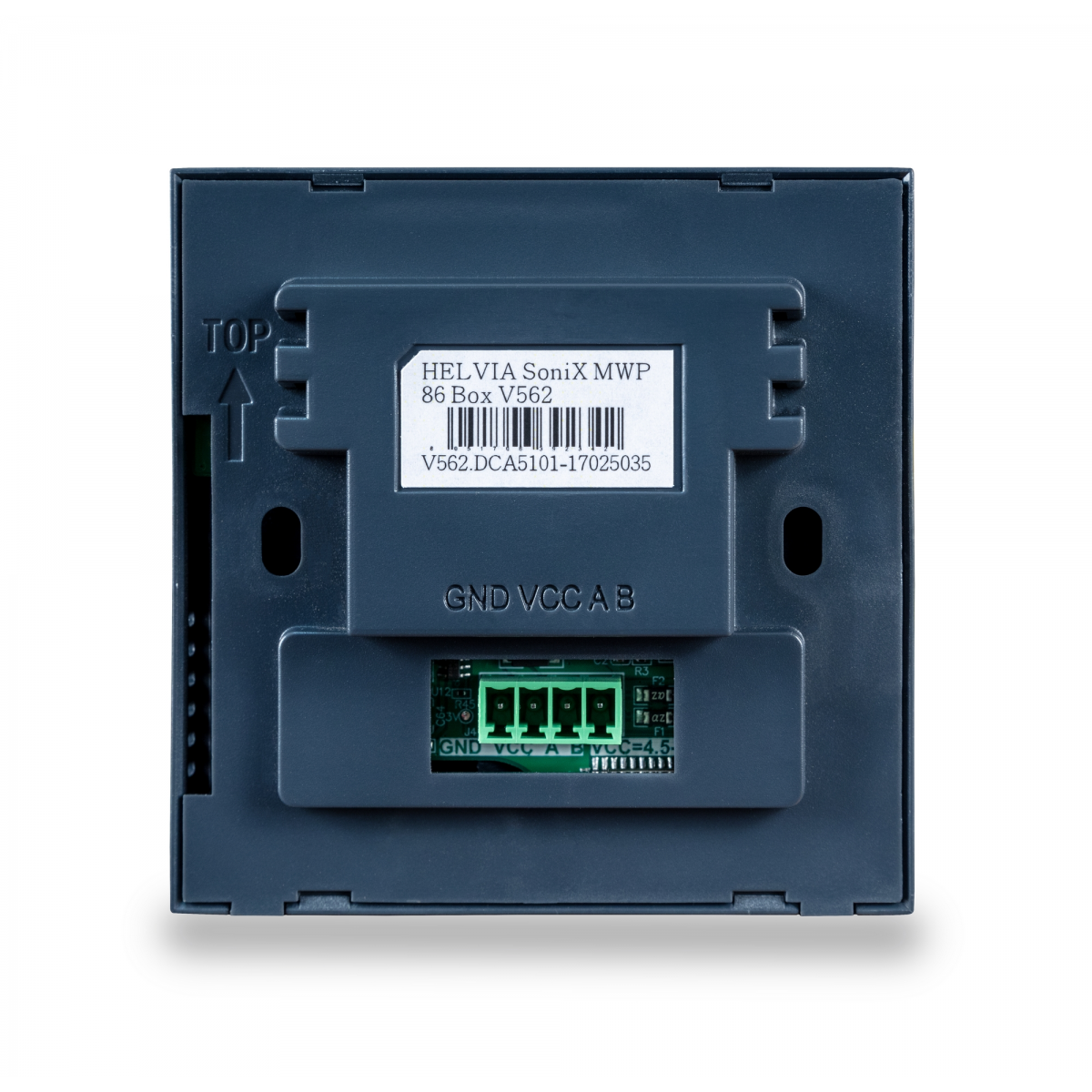

| Connections | 4-Pin x 2.54mm Euroblock |
| Power Requirements | DC24V - 0,1A |
| Power Adapter (Included) | Input 100 ~ 240VA, 50/60 Hz / Output DC24V - 2A |
| Product Dimension (WxDxH) | 90 x 90 x 28 mm (3.5 x 3.5 x 1,1 inchs) |
| Product Weight | 0,2 kg ca (0,4 lbs. ca) |
