ONDA-660TFW
Description
ONDA in-wall speaker series is born to satisfy all those indoor installations where sound pressure and quality higher than normal 70/100V systems are requested.
The ONDA speakers are all low-impedance (8ohm), coaxial, with Kevlar woofers, silk-dome tweeters, precision crossovers; essentially true 2-way speakers for professional applications, but ceiling/wall ... Read more
ONDA in-wall speaker series is born to satisfy all those indoor installations where sound pressure and quality higher than normal 70/100V systems are requested.

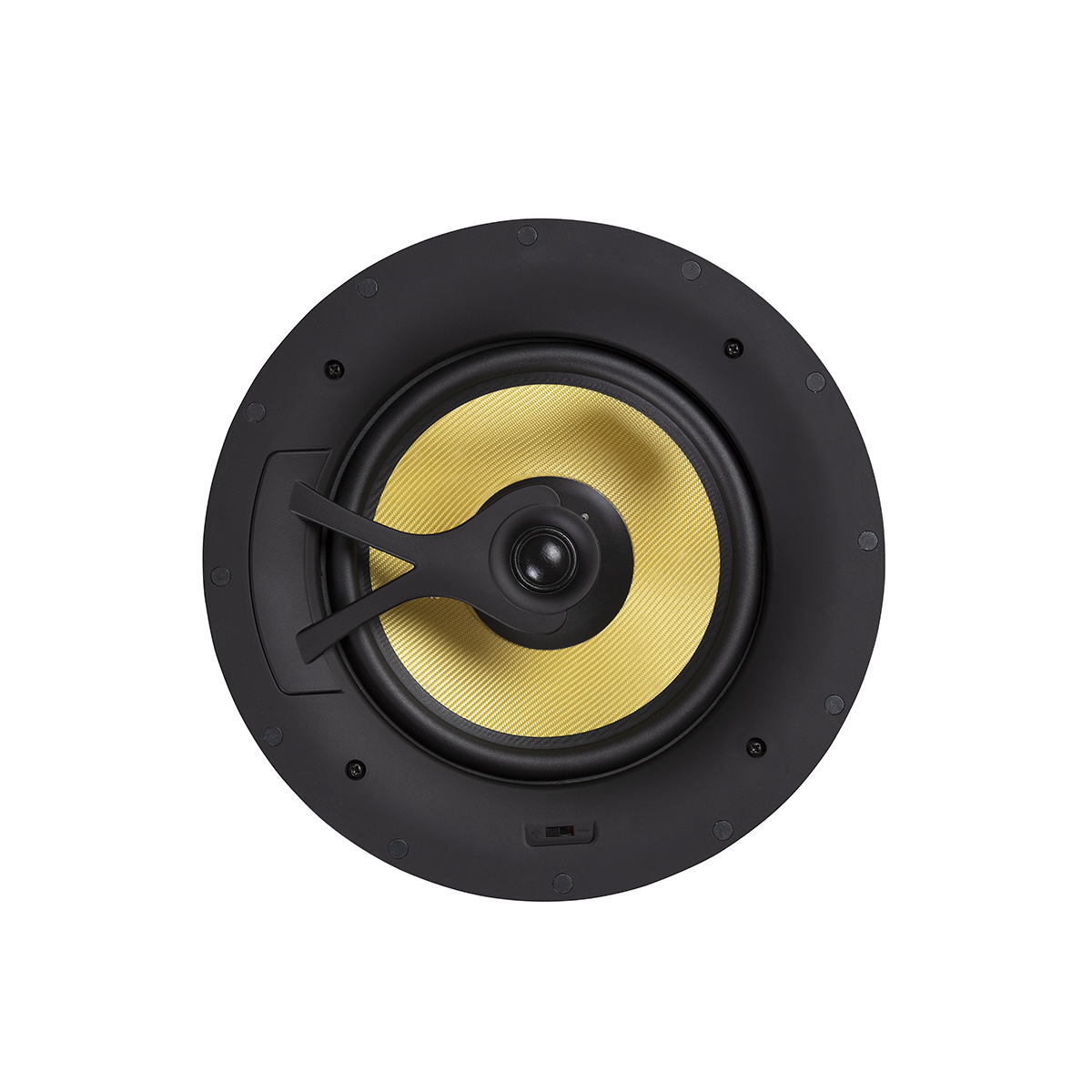

The ONDA speakers are all low-impedance (8ohm), coaxial, with Kevlar woofers, silk-dome tweeters, precision crossovers; essentially true 2-way speakers for professional applications, but ceiling/wall mount.

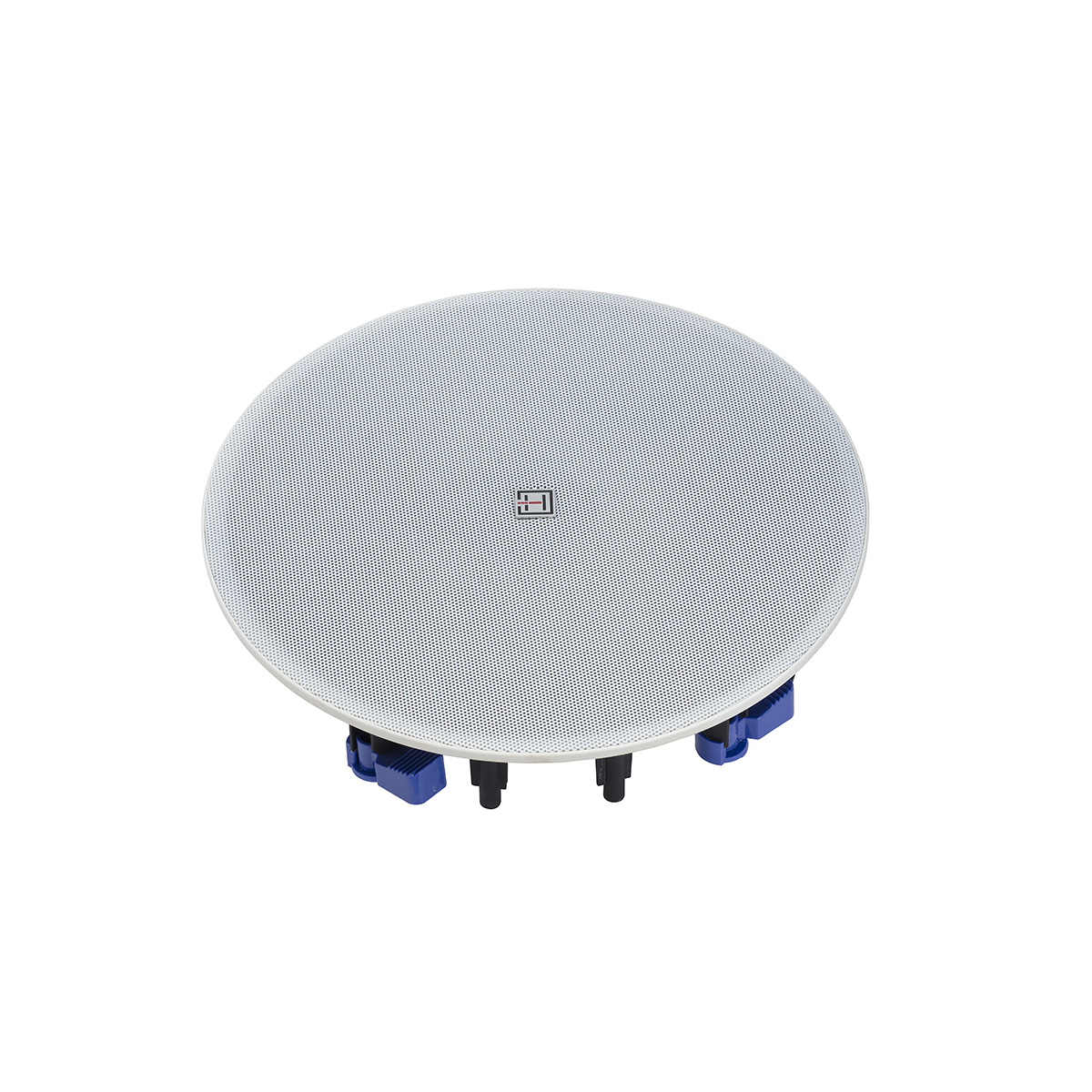

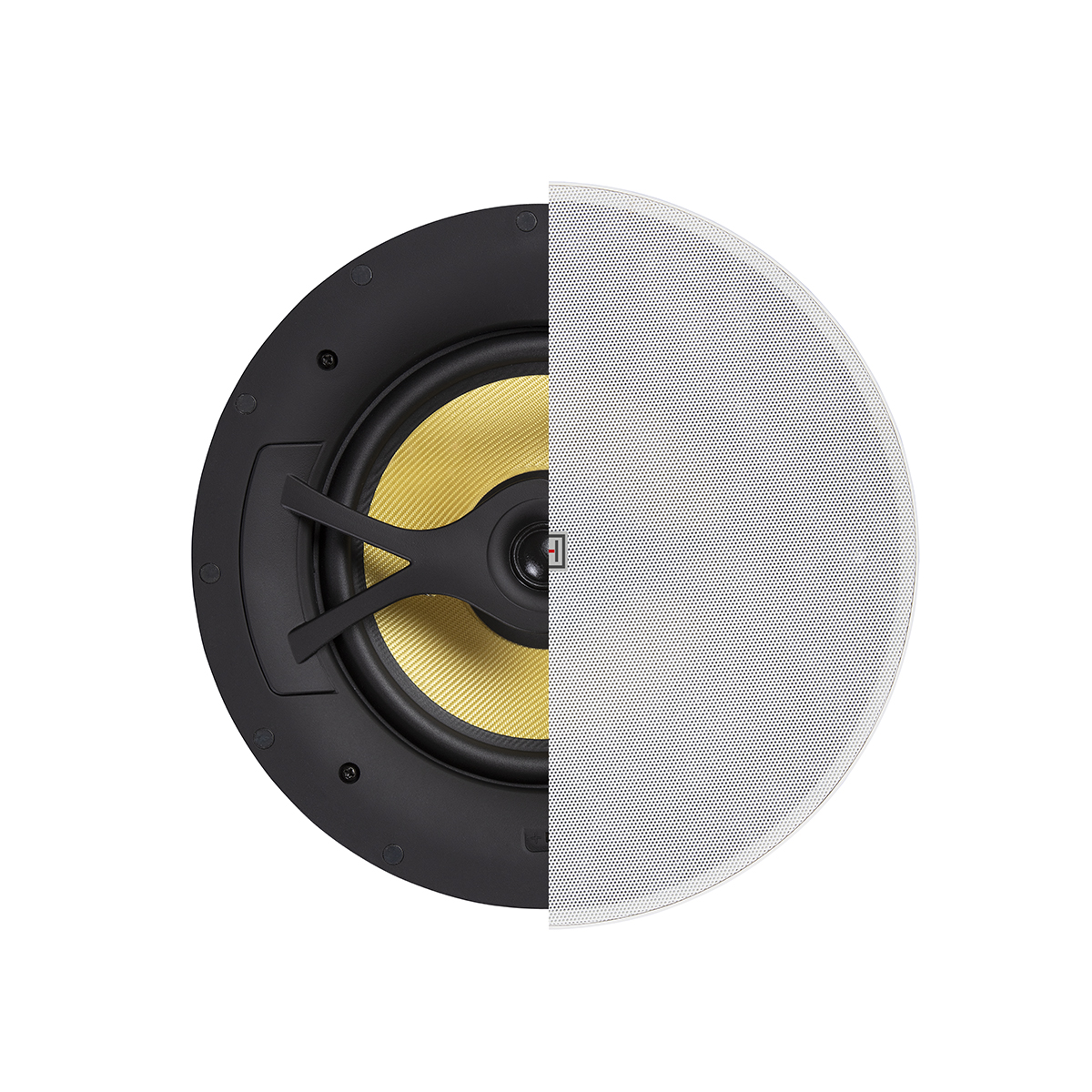

The look of the front panel is minimalist and captivating, and reminds recording studio monitor. The frame-less design, with black ABS frame and white magnetic grids, makes the ONDA speakers extremely discreet. Finally, the grids can be repainted to make them even less visible.
Read lessHighlights
Product details
| 2-Way Hi-Fi Coaxial Low-Impedance Loudspeaker | |
| Frame-less Design with Magnetic Grille | |
| Quick-Fit Mounting System with 4 Screws | |
| 60W RMS Power | |
| High Excursion Kevlar Woven Cone Woofers | |
| 6.5” (165mm) Woofer Diameter | |
| 0.76” Silk-Dome Tweeter | |

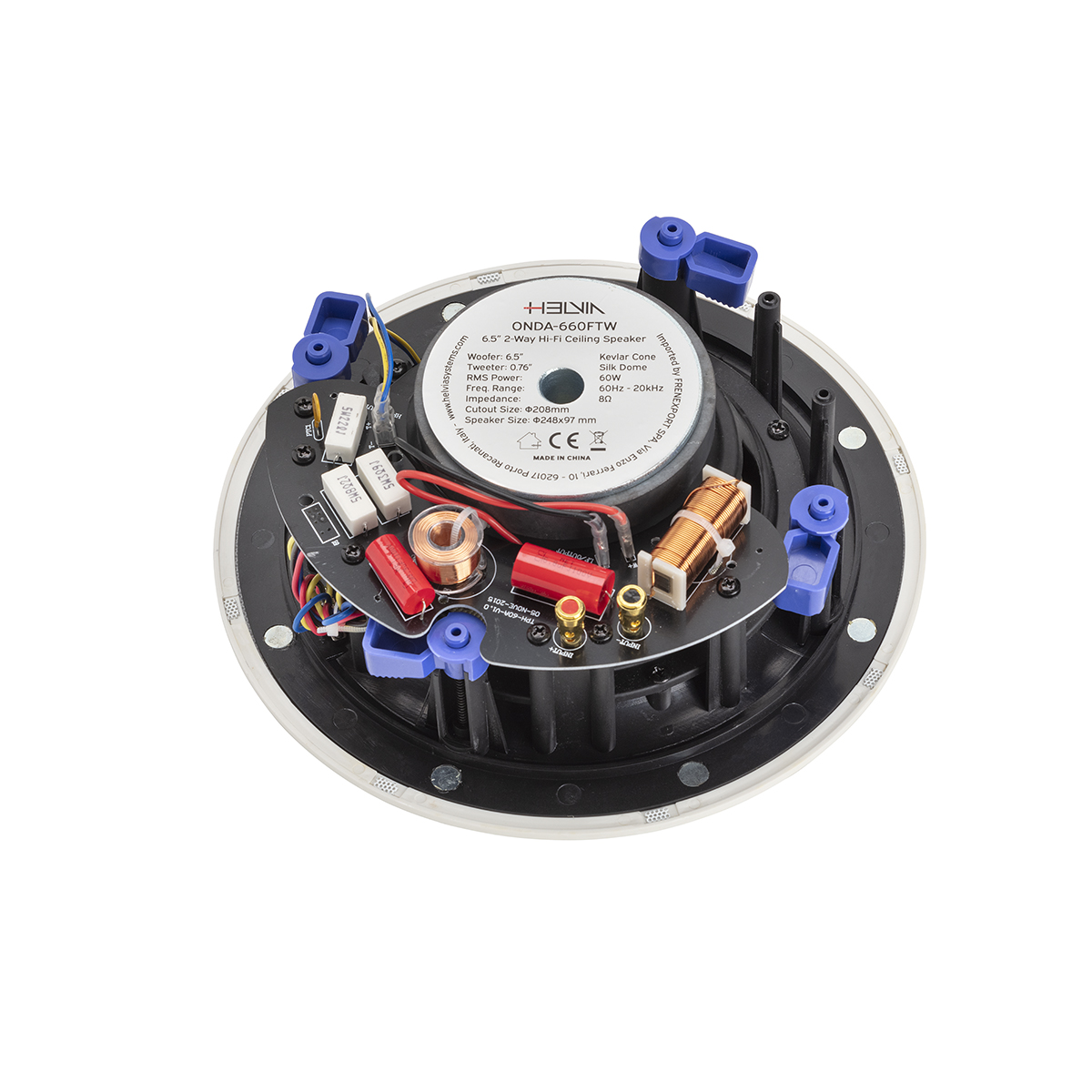

| Built-In Precision Passive Crossover | |
| +/-2dB High-Frequency Attenuation Selector |
| Speaker Type | 2-Way Passive, Coaxial |
| Frequency Response (-10dB) | 60Hz-20kHz |
| Sensitivity (1W @ 1m) | 93dB |
| RMS Power | 60W |
| Impedance | 8 ohm |
| Woofer | 6.5” (165mm), Kevlar Woven Cone |
| Tweeter | 0.76” (20mm), Silk Dome |
| High-Freq. Attenuator | 2-position switch (0dB/-2dB) |
| Housing | ABS |
| IP rate (speaker installed) | IP54 |
| Mounting | Quick mounting system with 4 screws |
| Grille | Frameless Design, Magnetic Mount, Perforated steel with acoustic transparent foam inside, paintable |
| Color | Black Housing / White Grille |
| Cutout Size | Ø 208 mm |
| Product Size (WxDxH) | Ø 248 x 97 mm |
| Speaker Weight | 1,6 kg |
| Packing Size (WxDxH) | 270 x 270 x 98 mm |
| Packing Weight | 1,9 kg |
