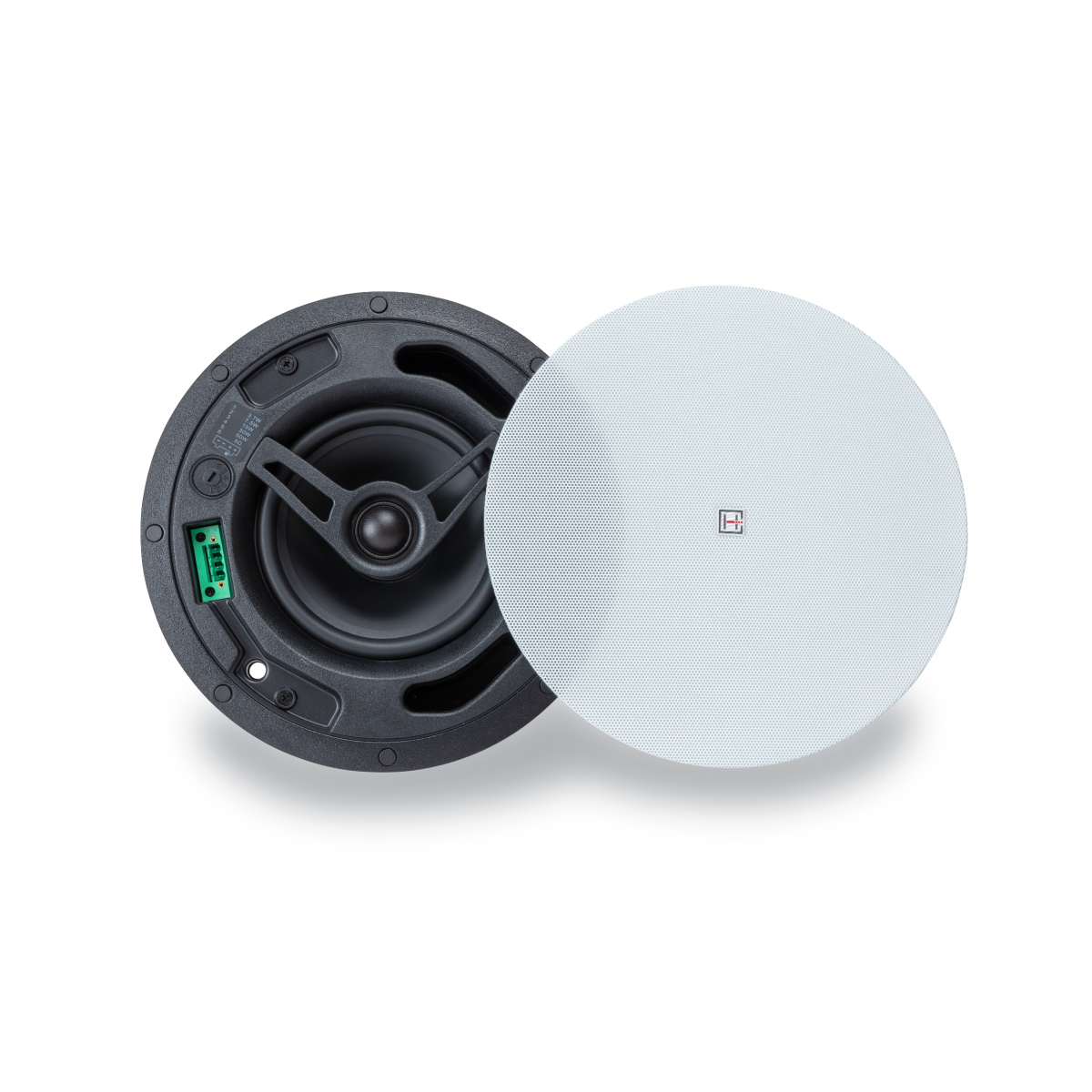

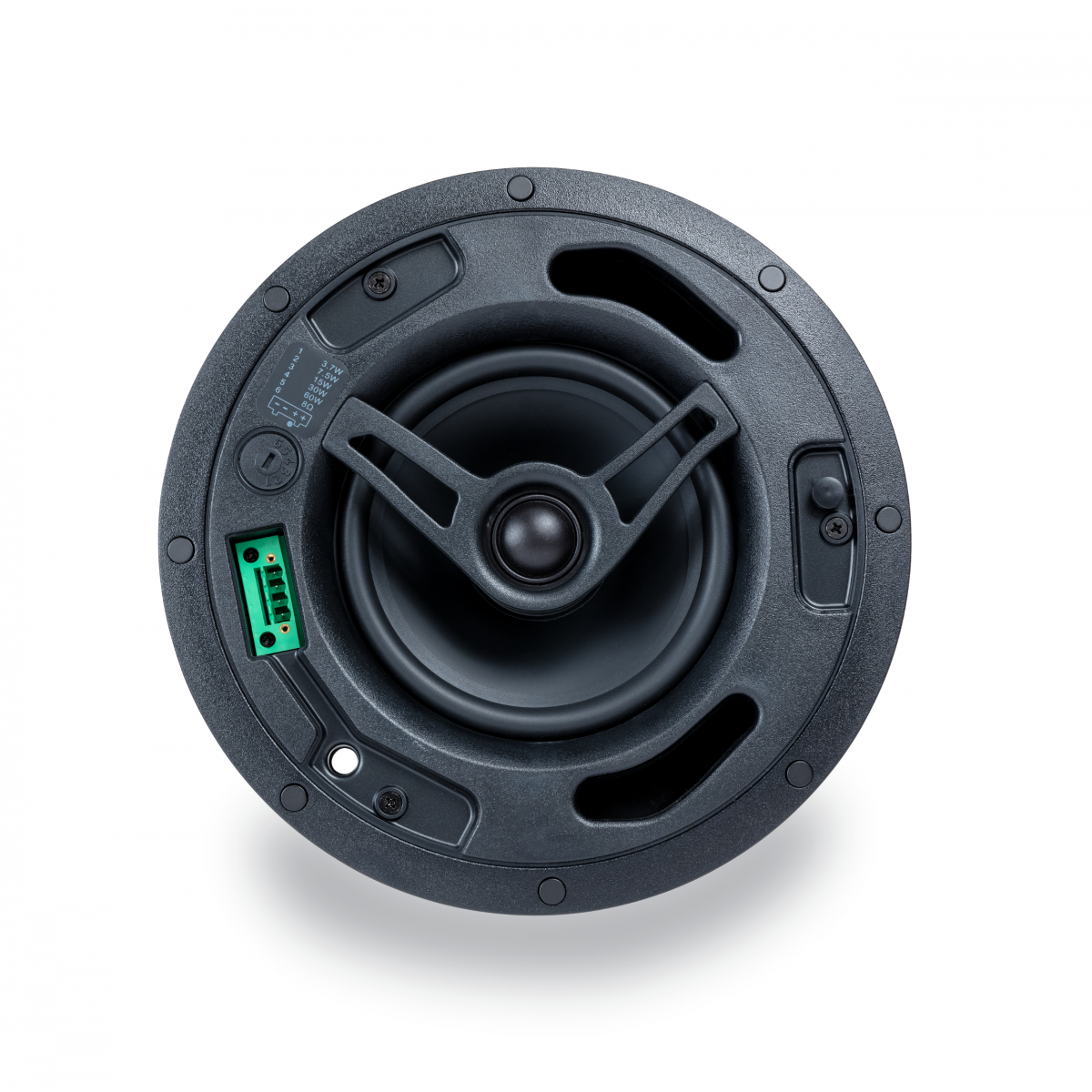

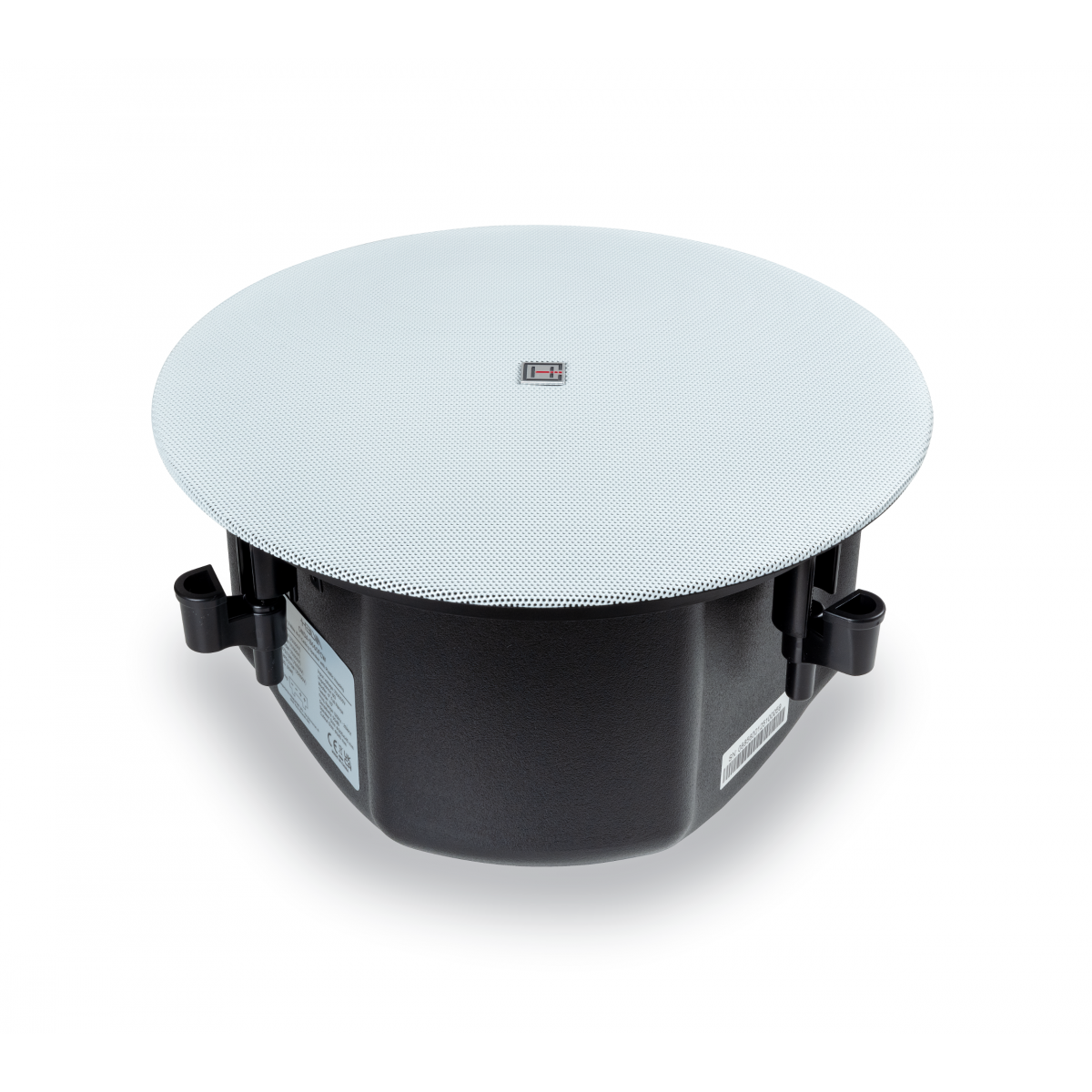

ONDA-B660FCW

60W 2-Way Hi-Fi Ceiling Speaker with Plastic Housing
NEW
HLV0123
NEW
HLV0123

Description

ONDA B660FCW is a powerful and accurate 2-Way loudspeaker with 6” high excursion woofer, 1.5” tweeter delivering 60W RMS power. It can be used with standard 70/100V as well as low impedance (8 ohm) professional amplifiers and provide transparent and brilliant sound.

The presence of the back can with two front reflex ports allows for an emphasis on the frequen... Read more

ONDA B660FCW is a powerful and accurate 2-Way loudspeaker with 6” high excursion woofer, 1.5” tweeter delivering 60W RMS power. It can be used with standard 70/100V as well as low impedance (8 ohm) professional amplifiers and provide transparent and brilliant sound.

The presence of the back can with two front reflex ports allows for an emphasis on the frequency response on the medium-low frequency range, giving a much warmer and more enveloping sound even in the absence of the acoustic box effect due to the ceiling, which is necessary in the case of traditional ceiling speakers.

Installation is very easy, thanks to the quick mounting system, which is hidden behind the grill and offer an elegant and minimalist design. The built-in line transformers allow use with 70/100V lines and offer 5 power taps plus 8ohm to better adapt to different speaker arrangement and amplifier powers.

The connector is a 4-pin Euroblock type (2 plus - 2 minus, for easy linking to other speakers) and is located on the front panel along with the power selector. This greatly facilitates assembly and setup of the speaker even if it is already fixed to the ceiling.

Read less

Downloads

Highlights

Quick-Fit System
2-Way Speaker
Coaxial Speaker
70V-100V Line
Low Impedance
Crossover
Frameless

Product details

Key features
2-Way Hi-Fi Loudspeaker
6” PP Cone Woofer
1.5” Silk-Dome Tweeter
60W RMS Power
8Ω Impedance
Built-in Line Transformer with 6-Position Selector
PP Back cover for Bass enhancement
Frameless Metal Grille with Magnets
Quick-Fit Mounting System
Black housing with White Grille
Specifications
Rated power 60W
Input Voltage 70V/100V
Impedance
Tap Selector (100V) 60-30-15-7.5-3.75W; (70V) 30-15-7.5-3.75-1.875W; 8Ω
Sensitivity 90dB
Frequency response 120Hz - 20kHz
Speaker unit 6-inch full-range + 1.5-inch tweeter
Cutout Size Ø 240mm (9.44”)
Speaker Size Ø 265 x 145mm (Ø 10.43” x 5.70”)
Speaker Weight 2,6kg (5.73 lbs.)
Packing Size (WxDxH) 320 x 320 x 185mm (12.60” x 12.60” x 7.28”)
Packing Weight 3,4kg (7.49 lbs.)
