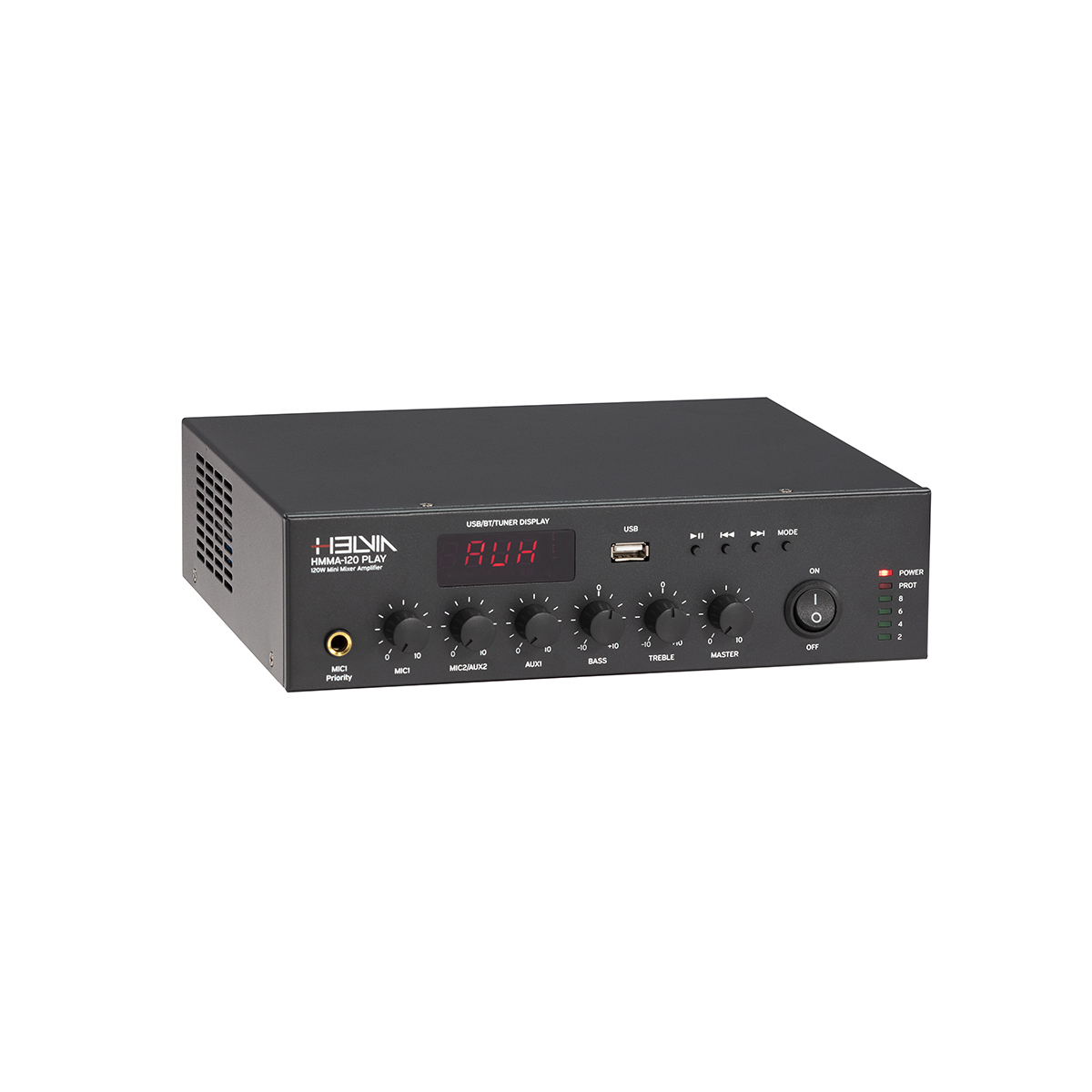

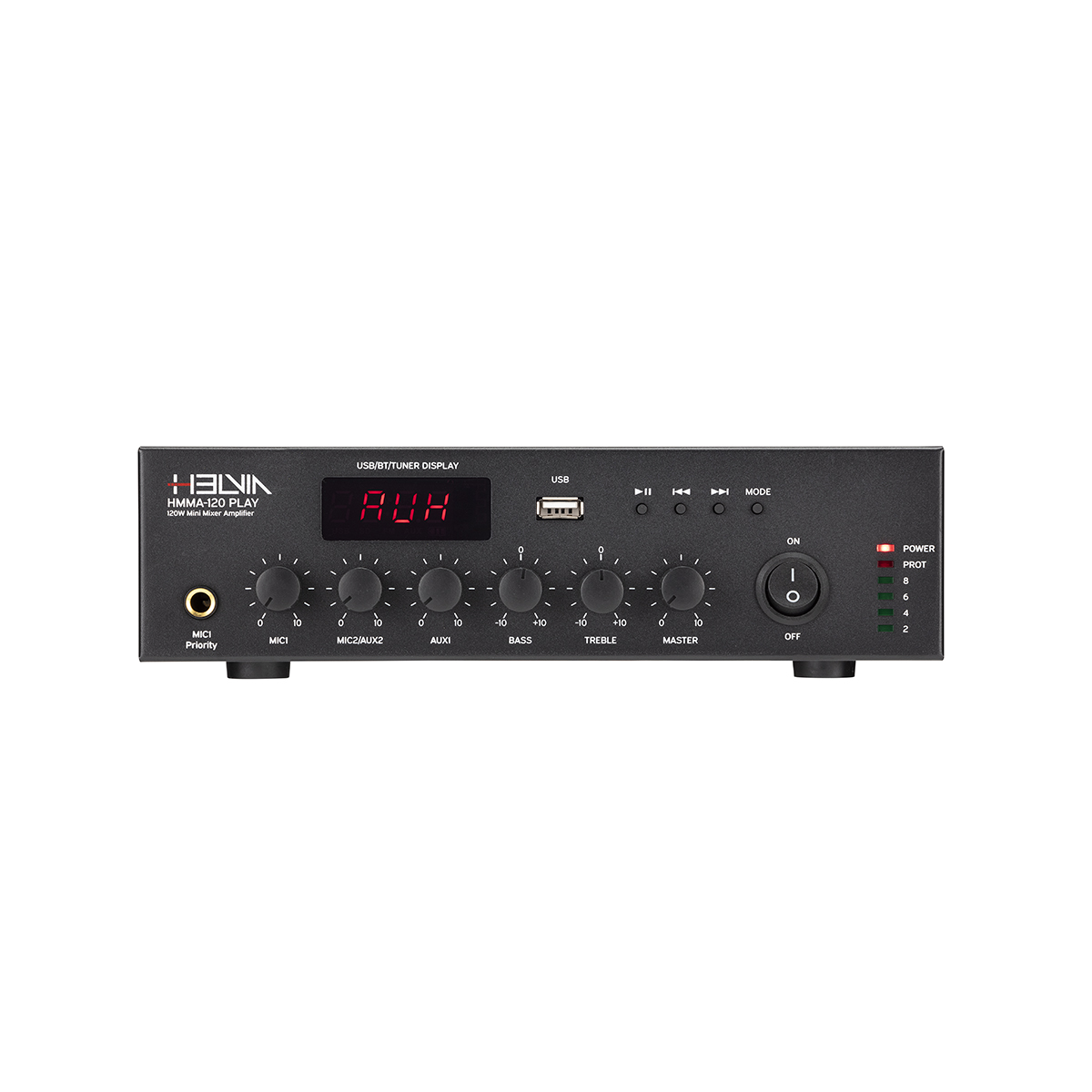

HMMA-120 PLAY
Description
HMMA PLAY series is designed for all those PA applications where space is quite zero.
In half 19" Rack Unit there is a Class-D amplifier with powers ranging from 35W to 120W (70-100V or 4-16ohm outputs), a USB/BT/FM Radio with Remote Control, and a mixer for the control of the individual audio sources and the master.
It is also possible to connect these ampl... Read more
HMMA PLAY series is designed for all those PA applications where space is quite zero.
In half 19" Rack Unit there is a Class-D amplifier with powers ranging from 35W to 120W (70-100V or 4-16ohm outputs), a USB/BT/FM Radio with Remote Control, and a mixer for the control of the individual audio sources and the master.
It is also possible to connect these amplifiers to your alarm system and power a 24V in the event of a fire prevention system. Really the perfect solution for small business premises.
Read lessHighlights
Product details
| Compact design, Half 19” Rack Unit Size | |
| 100V-70V & 4-16 ohm Speaker Output | |
| 120 Rated Power | |
| Built-in USB Player, FM Radio & BT Streaming with remote controller | |
| 2 MIC inputs (MIC1 with 6.3mm Jack; MIC2 with 2 XLR and Phantom) | |
| 1 EMC input, 2 Line Inputs, 1 Line Output | |
| High-Performance Class-D amplifier with Switching Power Supply | |
| Individual Volume control for Mic 1-2, Line 1-2, MP3/FM/BT | |
| Bass/Treble and Master Volume Control | |
| DC24V Auxiliary Power Input |
| Rated Power | 120W @4ohm |
| Speaker Outputs | 100V or 70V & 4Ohms-8 Ohms-16 Ohms |

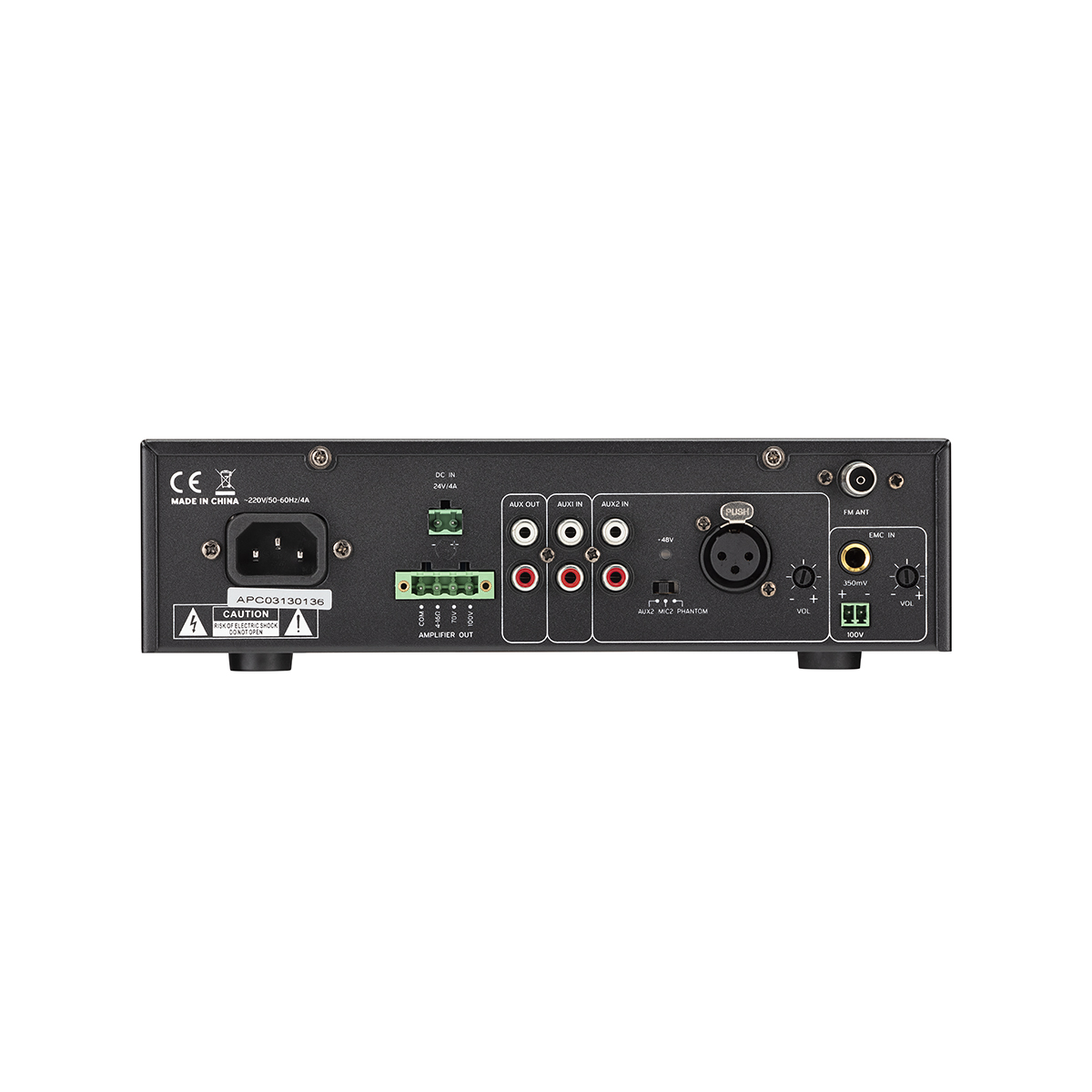

| Connectors | Mic1 Input with unbalanced 6.3mm Jack; MIC2 with balanced XLR and Phantom Power; Line1-2 Inputs and Line Output with RCA |
| Knob Controls | Microphone 1-2, Line1-2, MP3/FM, bass/treble and master |
| Sensitivity | MIC 1&2 5mV; AUX 1&2 350mV; EMC 350mV |
| MIC frequency response | 180Hz-10kHz (±3dB) |
| AUX frequency response | 70Hz-16kHz (±3dB) |
| Noise | <5mV (4 ohm load output terminal) |
| THD | <1% 1KHz |
| Protection | Short-Circuit, Clip, Overload and High-Temp Protection |
| Bass-Treble Adjustment | 10dB (±2) |
| USB Connection | Type-B, Female |
| USB Drive Format | FAT32 format –32GB Max |
| Player File Formats | MP3 e streaming audio wireless BT |
| BT Receiving Distance | 10m |
| BT Standard | BT2.1+EDR |
| Power Requirement | AC~110-220V |
| Priority | EMC > MIC1 > Others |
| Unit Size (W×D×H) | 247x198x66 mm |
| Packing size (W×D×H) | 343x302x121 mm |
| Net Weight | 3.0kg |
| Gross Weight | 3.7Kg |
