EVOCA 30H
Description

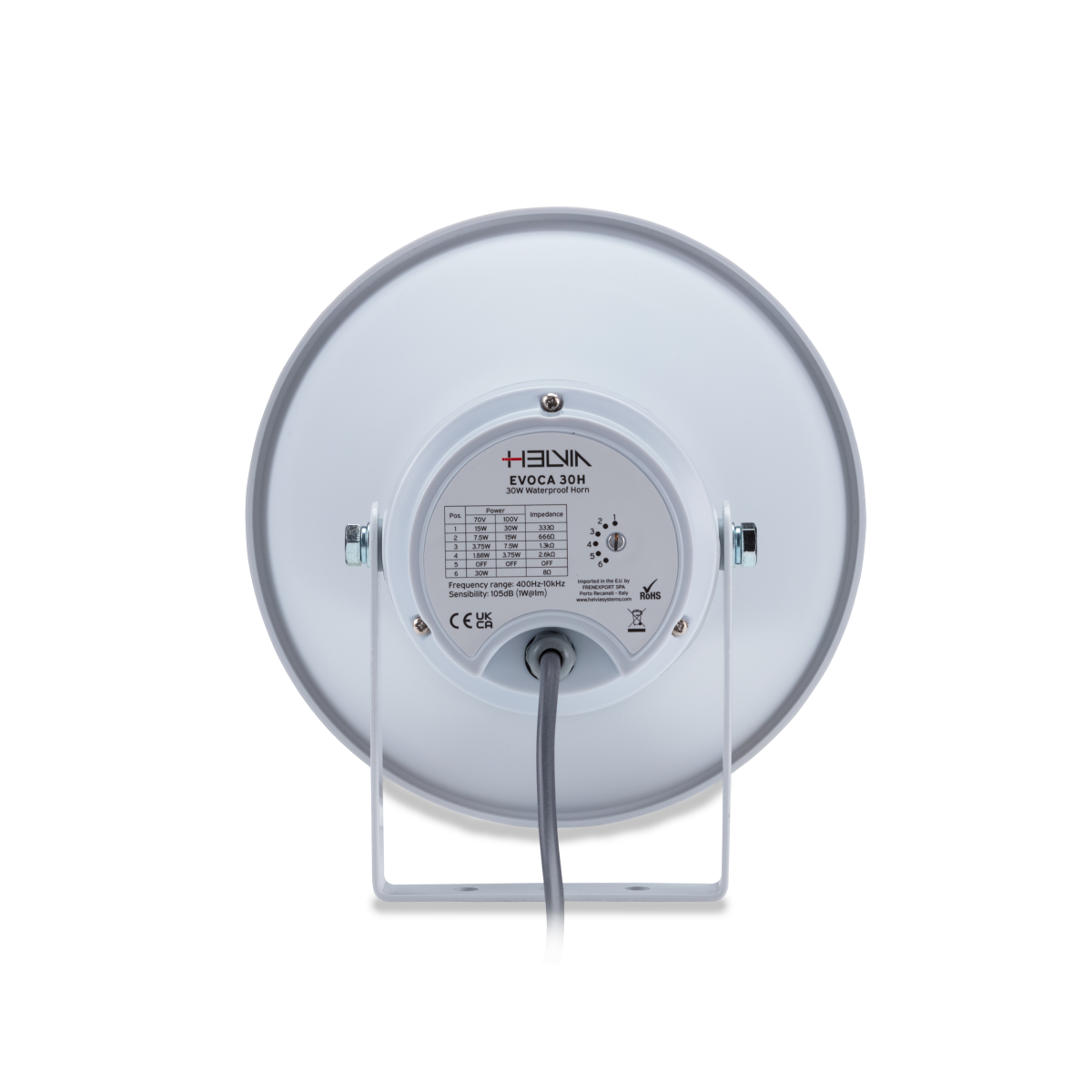

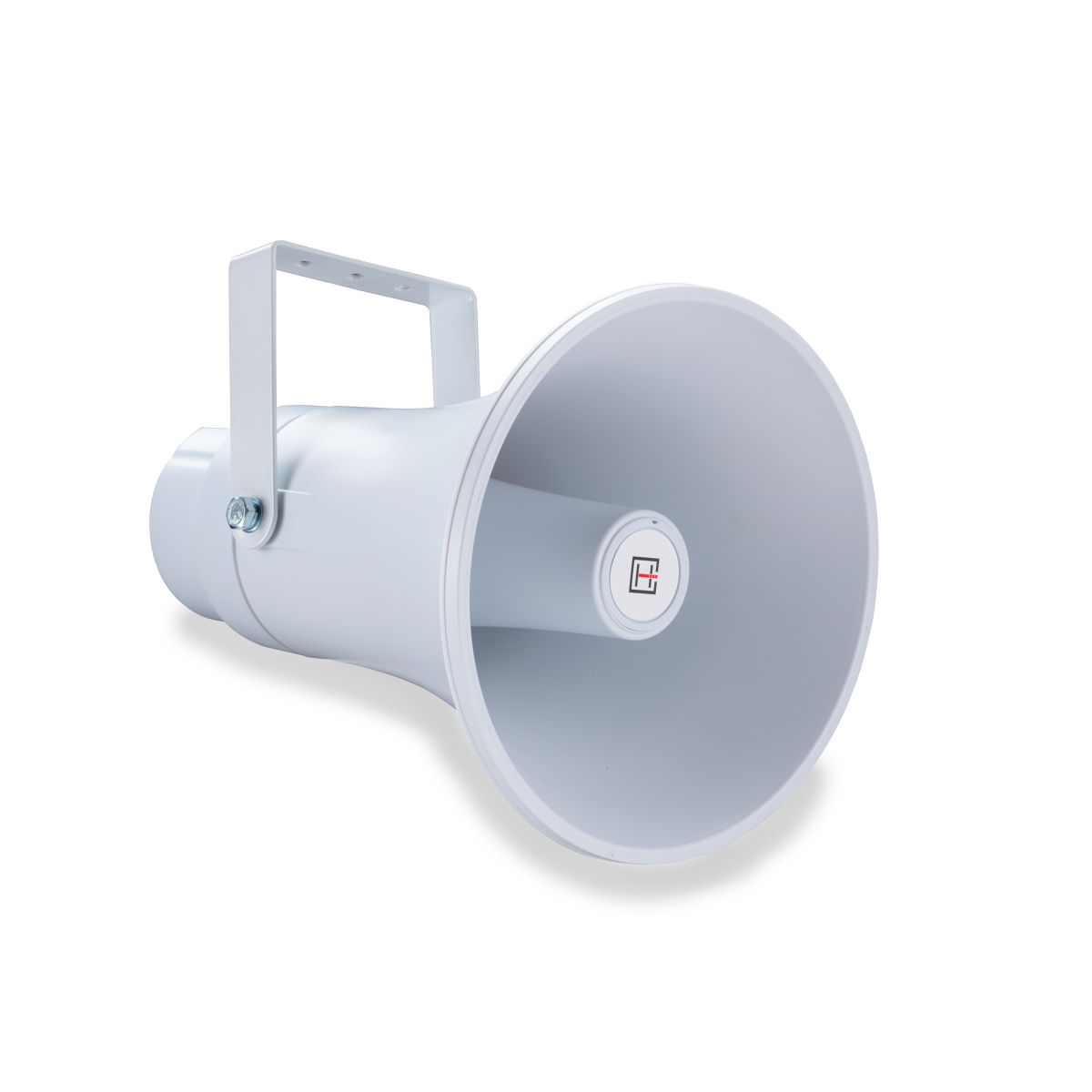

HELVIA EVOCA 30H is a compact, lightweight and waterproof horn speaker, designed to provide high efficiency and high sound intelligibility with low distortion. The built-in line transformer allows the horn to be connected to 70V and 100V constant voltage or low-impedance lines, and select the power through the rotary dial on the rear cover.
The horn can be ea... Read more
HELVIA EVOCA 30H is a compact, lightweight and waterproof horn speaker, designed to provide high efficiency and high sound intelligibility with low distortion. The built-in line transformer allows the horn to be connected to 70V and 100V constant voltage or low-impedance lines, and select the power through the rotary dial on the rear cover.
The horn can be easily mounted to any wall or ceiling by using the stainless-steel mounting bracket.
Thanks to the weatherproof treated plastic housing, the EVOCA 30H has an IP66 Ingress Protection standard, which make it suitable for outdoor installations.
Read lessHighlights
Product details
| IP66 Protection Type | |
| Built-in 30W/15W/7.5W/3.75W Multi-Tap Transformer | |
| Adjustable Power Taps with 100V / 70V / 8Ω Modes | |
| High Quality Plastic Housing | |
| Angle Coverage | 70° |
| Rated Power @ 100V | 30W / 15W / 7.5W / 3.75W |
| Rated Power @ 70V | 15W / 7.5W / 3.75W / 1.9W |
| Impedance | 8Ω / 333Ω / 666Ω / 1.3KΩ / 2.6KΩ |
| Sensitivity | 105 dB (1W/1m) |
| Frequency Range | 400Hz ~ 10KHz |
| Max SPL | 116.8dB |
| Protection Level | IP66 |
| Color | White |
| Horn | Plastic |
| Diaphragm | Phenolic |
| Magnet | Ferric |
| Mounting bracket | Stainless Steel |
| Mounting holes | 3x Ø7.5mm (0.03 inch) holes with 30mm (1.2 inch) space |
| Horn Size | Ø240 x 303mm (Ø9.45 x 11.93 inch) |
| Net weight | 2,3 kg – 5.07 lbs. |
| Packing Size | 250 x 250 x 325 mm (98.42 x 98.42 x 127.95 inch) |
| Gross Weight | 2,6 kg – 7.73 lbs. |
