SONIX 4800F
Description
SoniX 4800F is the new audio processor with 4 inputs and 8 outputs designed for both live applications and fixed installations. The quality of its converters and huge computing power make it an essential reference point for all audio professionals who need reliable, powerful and high-quality tools in line with the HELVIA philosophy.
The front panel is minimal... Read more
SoniX 4800F is the new audio processor with 4 inputs and 8 outputs designed for both live applications and fixed installations. The quality of its converters and huge computing power make it an essential reference point for all audio professionals who need reliable, powerful and high-quality tools in line with the HELVIA philosophy.

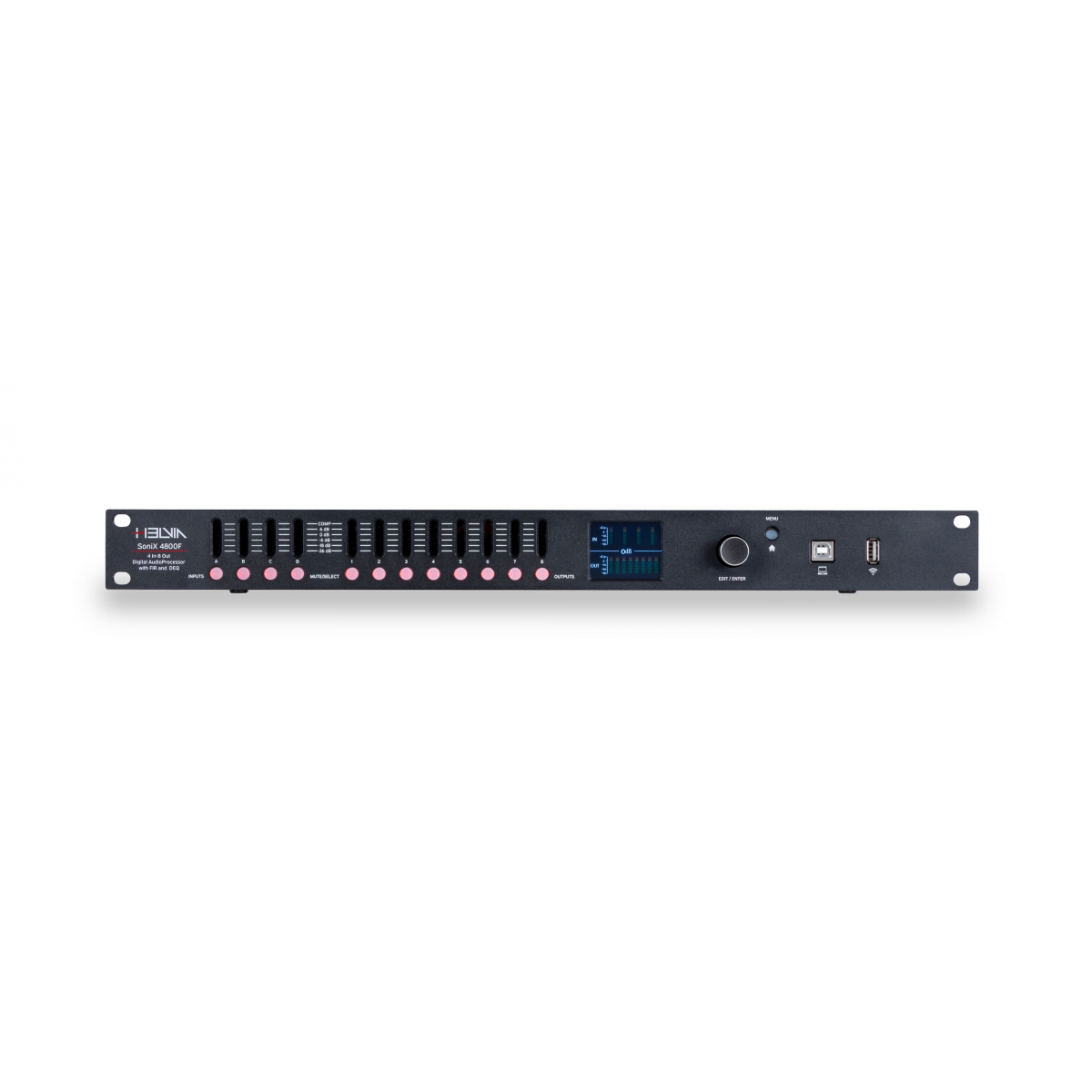

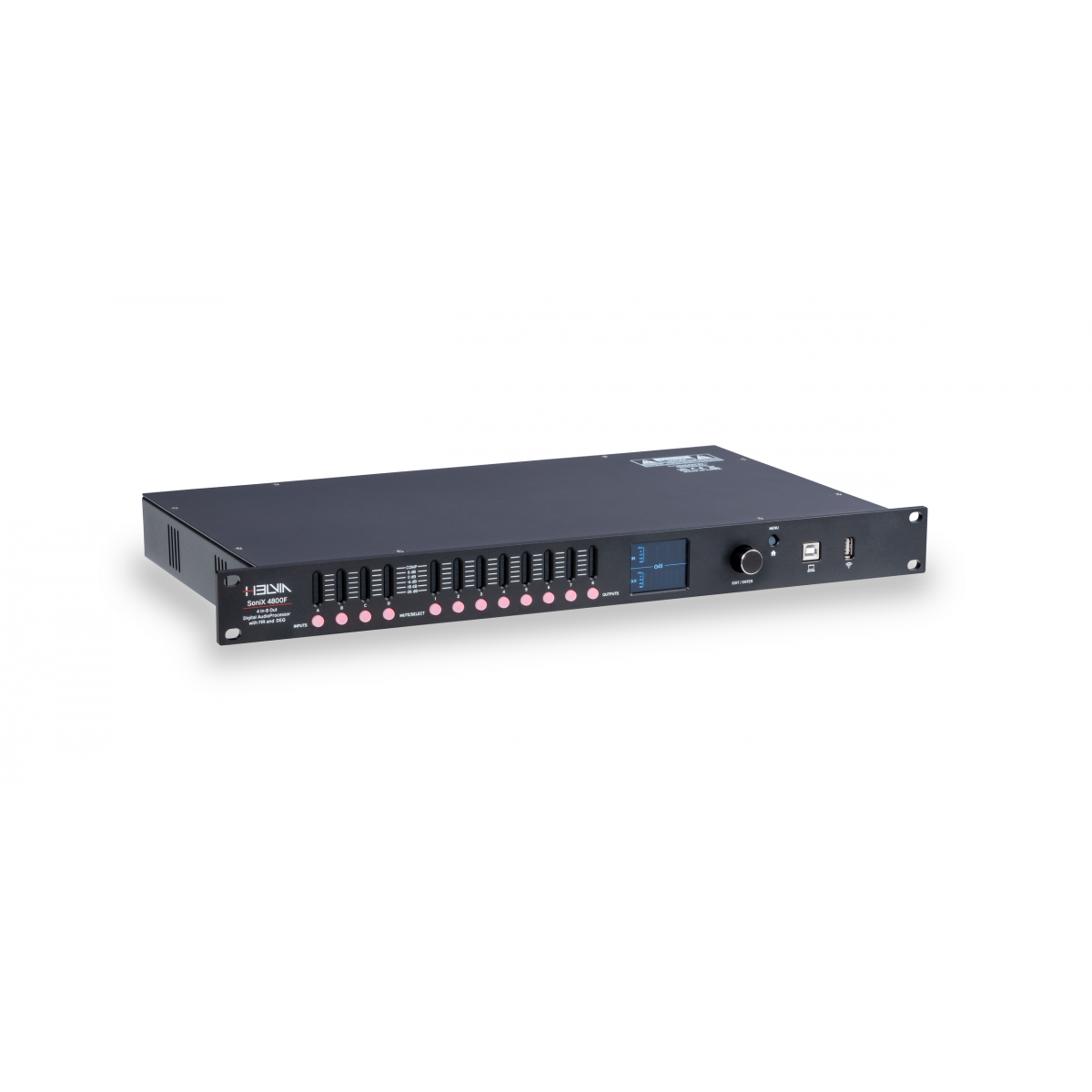

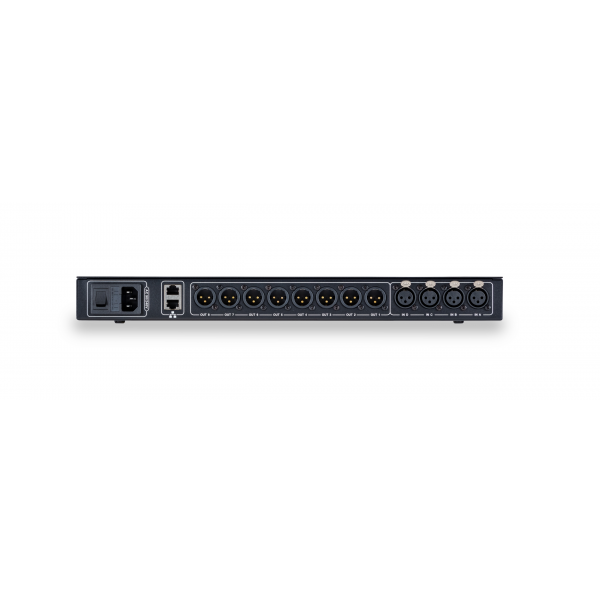

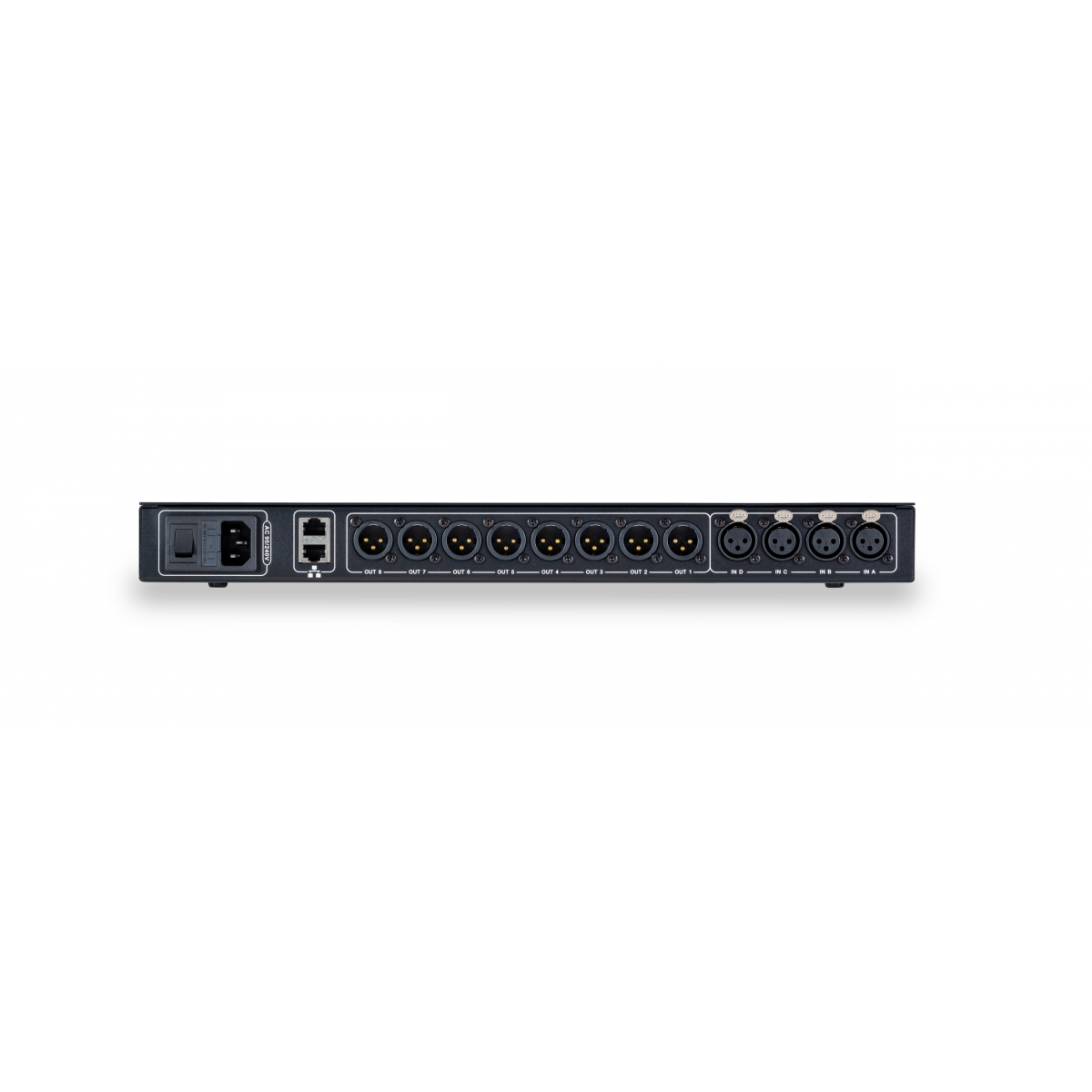

The front panel is minimal and sleek, and has only the essential controls (Mute buttons, VU meters, USB port, 2” TFT color display, data/entry, and menu button. The rear panel houses all balanced input/output connections, as well as the RJ-45 port for LAN connection.
At the heart of the machine is 32-bit/400MHz 4th generation SHARC processor with 24-bit AD/DA conversion and 192kHz sampling rate. The four inputs can be freely assigned and grouped to the 8 outputs via a classic matrix panel. All editing functions are accessible either from the front panel or from Windows® PC software that can be connected via USB or LAN.
Read lessHighlights
Complete Control. Just one click away

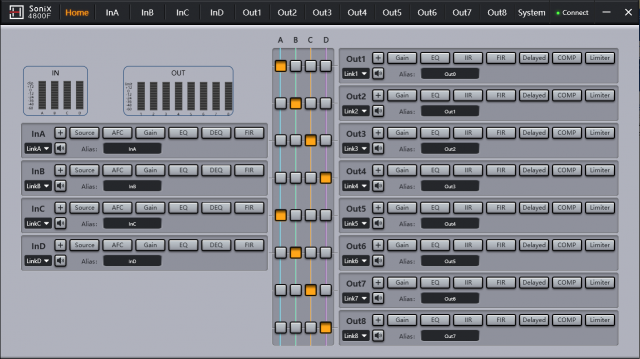

The control software is extremely sophisticated but equally simple and intuitive. Each input and output are represented by an real path that the signal follows within the SoniX 4800F. Pressing each of the buttons takes you to the relevant screen that allows the modification of many parameters.
4 Input Channels

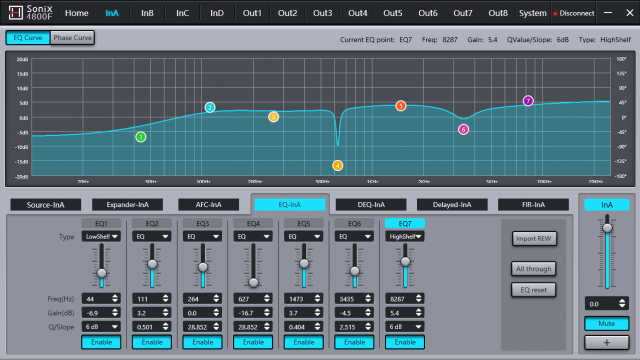

For the 4 inputs, in addition to the normal level, mute, phase, grouping, assignment and multi-band EQ controls, there are the Auto Feedback Cancellation function with 6 levels of intervention, the 3-band Dynamic Equalizer and the FIR (Finite Inpulse Response) filter with the possibility of saving and importing one's own settings.
8 Output Channels

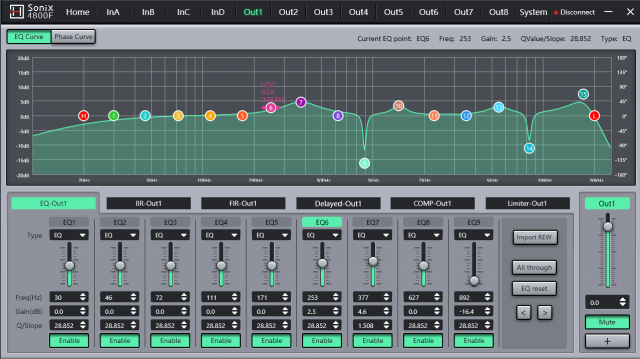

For the 8 outputs, in addition to the normal level, mute, phase, grouping, assignment and multi-band EQ controls that we find for the inputs, there are the 15-band PEQ plus HPF and LPF, the IIR (Infinite Impulse Response) and FIR filters, as well as the entire dynamics control section with Compressor and Limiter.
All inputs and outputs have delays of up to 1200ms. Finally, there are 32 freely programmable memories that can be recalled by the user from either the software or the control panel.
Product details
| Up to 192 kHz sample frequency, 32-bit - 400 MHz DSP processor, 24-bit AD/DA Conversion | |
| Six-degree Auto Feedback Cancellation function for each input channel | |
| DEQ on all Inputs with adjustable Gain, Bandwidth, Adjustable Frequency, Type, Dynamic Threshold, Ratio, Start Time, Recovery Time | |
| 15-Band Parametric EQ with 48dB/octave HPF & LPF (7-Band on inputs) | |
| FIR filters with sampling points from 256 to 512, different filter types and adjustable Cutoff Frequency | |
| Up to 1200ms Delay on all Inputs and Outputs | |
| Compression, Limiter on all Outputs | |
| Signal Generator on all Inputs with Sine Wave, Pink and White Noise | |
| USB/LAN Online Control | |
| 2” TFT color display | |
| PC software with multiple unit control | |
| 30 Scenes with Save and Recall functions | |
| Password Locking Function |
| Frequency response | ±0.2dB 10Hz-25kHz |
| THD + N | < 0.005% @ 10Hz-25KHz |
| SNR | >118dB at 1% THD + N 10Hz-25KHz |
| Maximum input level | +20dBu/7.775Vrms |
| Maximum output level | +20dBu /7.775Vrms |
| Gain range | - 80dB to +12dB per channel |
| Input impedance | > 10Kohm - XLR input |
| Output impedance | < 60 ohms - XLR output |
| Test signal | Independent sine wave / white noise / pink noise for each channel |
| Input equalization | 7 sections (parameter/ high / low rack / all-pass) + 3 sections dynamic EQ |
| High pass type | Ningke / BesseI / Bart 6 / 12 / 18 / 24 / 30 I 36 / 42 I 48 |
| Low pass type | Ningke / BesseI / Bart 6 / 12 / 18 / 24 / 30 / 36 / 42 / 48 |
| Delay | 1200ms / 0.01ms accuracy for each Input and Output |
| Output equalization | 15-Band + HPF/LPF per channel with high / low frame/ all pass filter |
| Output FIR | low pass / high pass / bandpass direct setting, External Inport/Export |
| Limiter | Clipping (Peak or RMS value), Threshold, Attack, Release Time |
| Output Compression | Adjustable Threshold / Ratio / Start time / Recovery time |
| Volume / Mute Control | Direct panel knob, total volume and mute control |
| Phase control | Input / output |
| Online control | USB / LAN control |
| Level meter | Dynamic indication of display level |
| Power range | 85V-260V / 50Hz-60Hz |
| Net weight | 3.6kg |
| Gross weight | 5.2kg |
| Overall dimensions | 46 x 482 x 250mm |
