MURA 230

30W Volume attenuator for 70-100V speakers, 11 positions + Off, with auxiliary line and 24V alarm control
J758J
J758J
J758J
J758J
J758J
J758J
J758J
J758J
J758J

Description

The MURA 2 Serie in-wall Volume Controllers offers a range of volume attenuators for 70V and 100V audio systems and are designed to be recessed in 82x82x48mm wall boxes (supplied). They allow control of the volume with, respectively, 4 positions + off for MURA 205, and 11 positions + off for MURA 210/230/260. The max. nominal powers range from 2.5W to 30W in c... Read more

The MURA 2 Serie in-wall Volume Controllers offers a range of volume attenuators for 70V and 100V audio systems and are designed to be recessed in 82x82x48mm wall boxes (supplied). They allow control of the volume with, respectively, 4 positions + off for MURA 205, and 11 positions + off for MURA 210/230/260. The max. nominal powers range from 2.5W to 30W in case of 70V lines; and 5W to 60W for 100V lines.

Each position attenuates the overall level from 5dB to 10dB, depending on the model. MURA 210/230/260 provide, in addition to the normal 70-100V audio line, the 70-100V auxiliary line at maximum level (the attenuation does not operate in this case but passes the whole signal to the speaker) and the 24V relay input for switching between normal and auxiliary line in case of alarm.

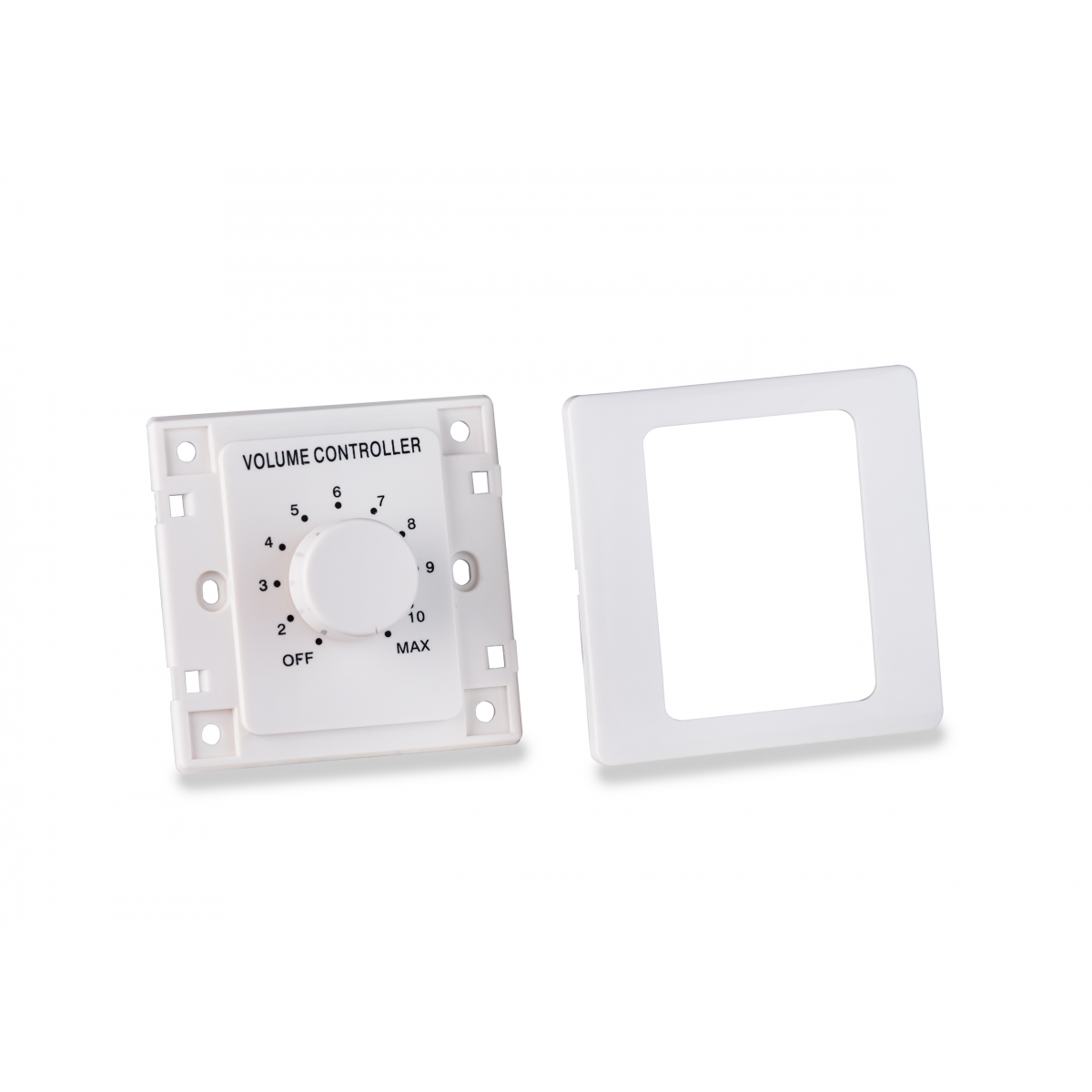

MURA 2 Series volume controllers are supplied with the front cover plate (white) and the in-wall box.

Read less

Downloads

Highlights

70V-100V Line

Product details

Key features
70V and 100V Constant Voltage Audio Line Operation
11 Positions (5dB attenuation) + Off
Auxiliary 70-100V Line with 24V relay control

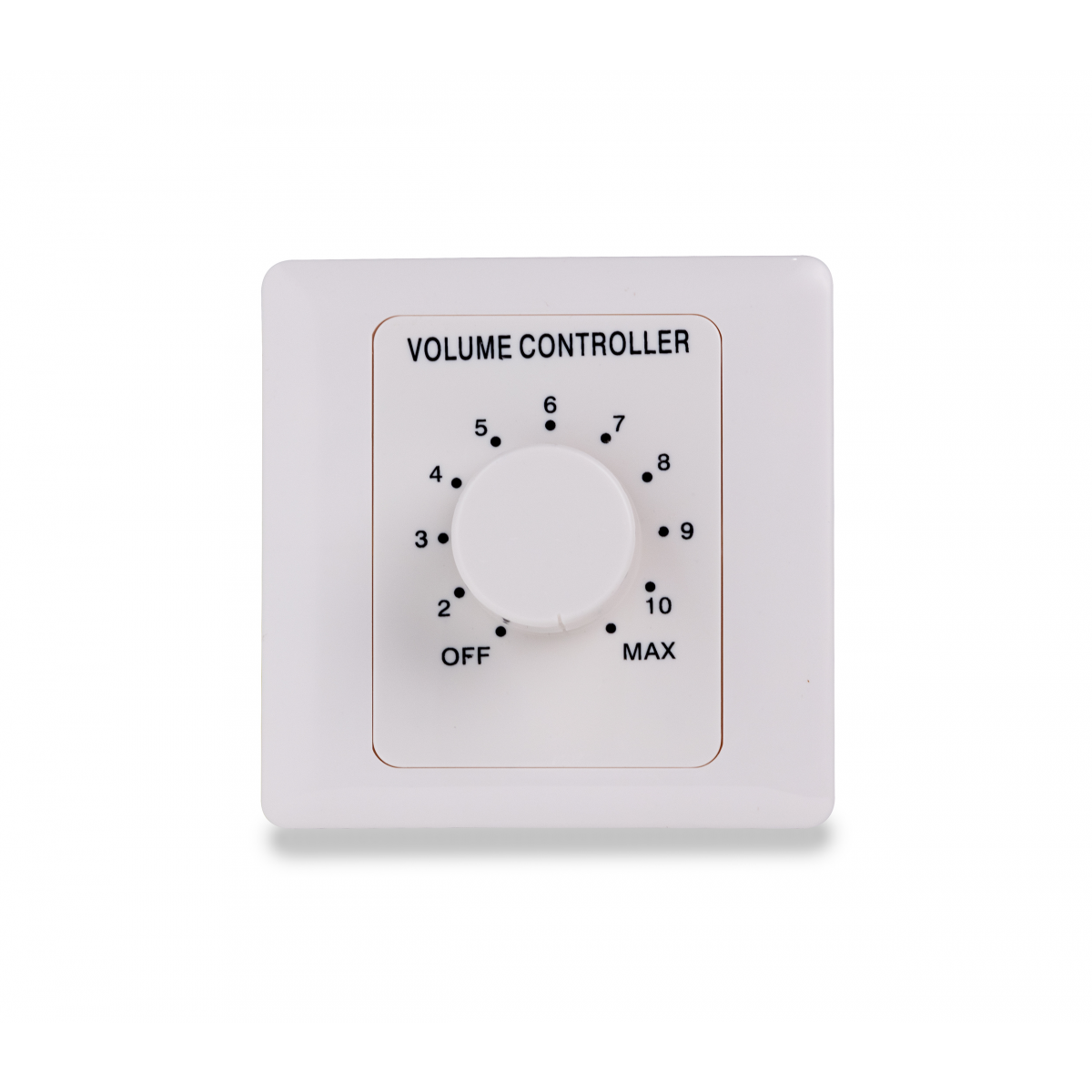

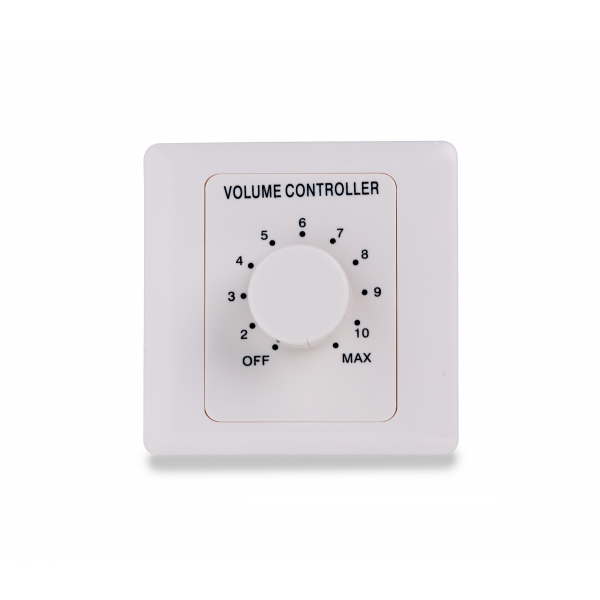

Front Cover Included (White)
In-Wall Mount Box Included
Specifications
Nominal Power @ 100V 30W
Nominal Power @ 70V 15W
Control 11 Positions + Off
Step Attenuation 5dB
Total Attenuation 55dB

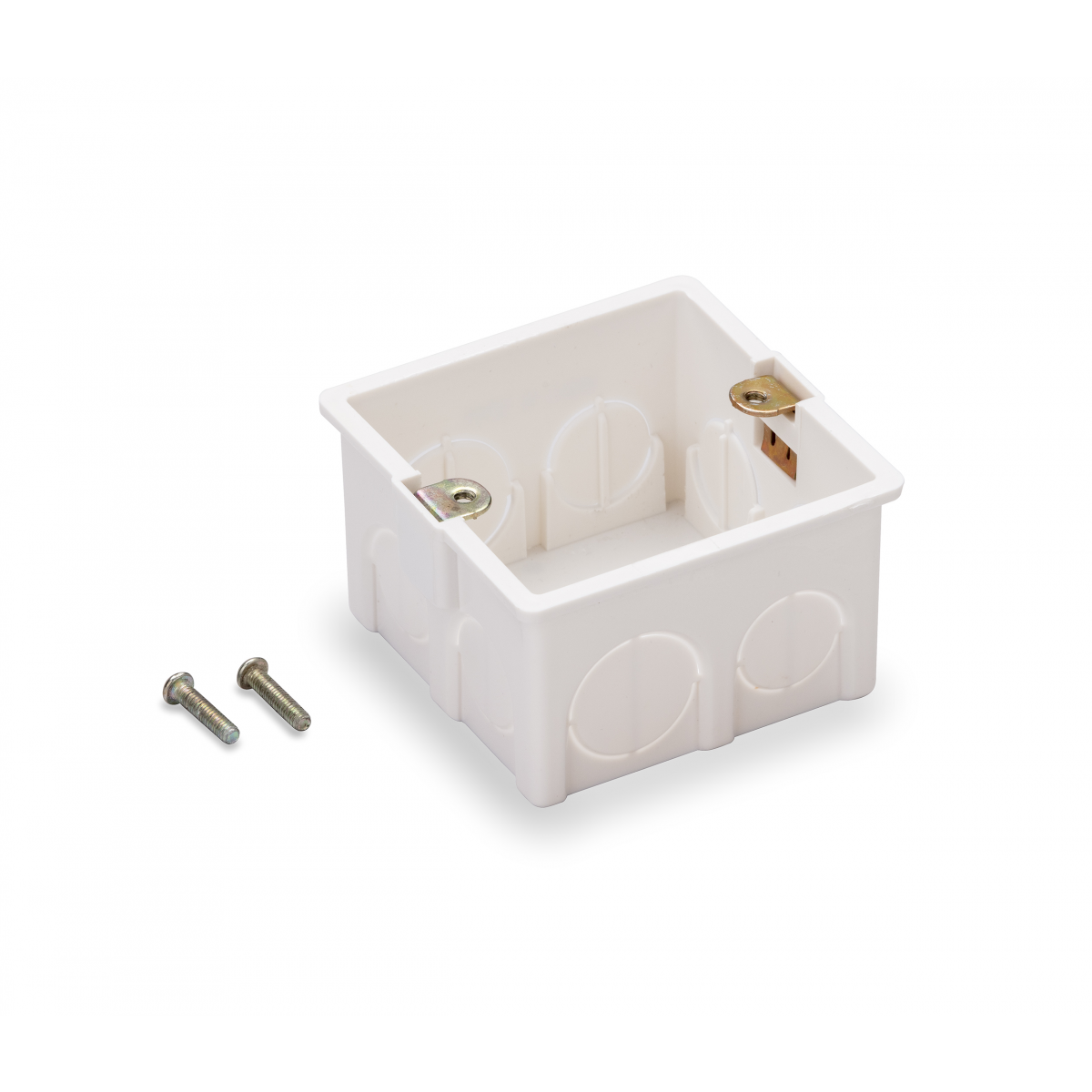

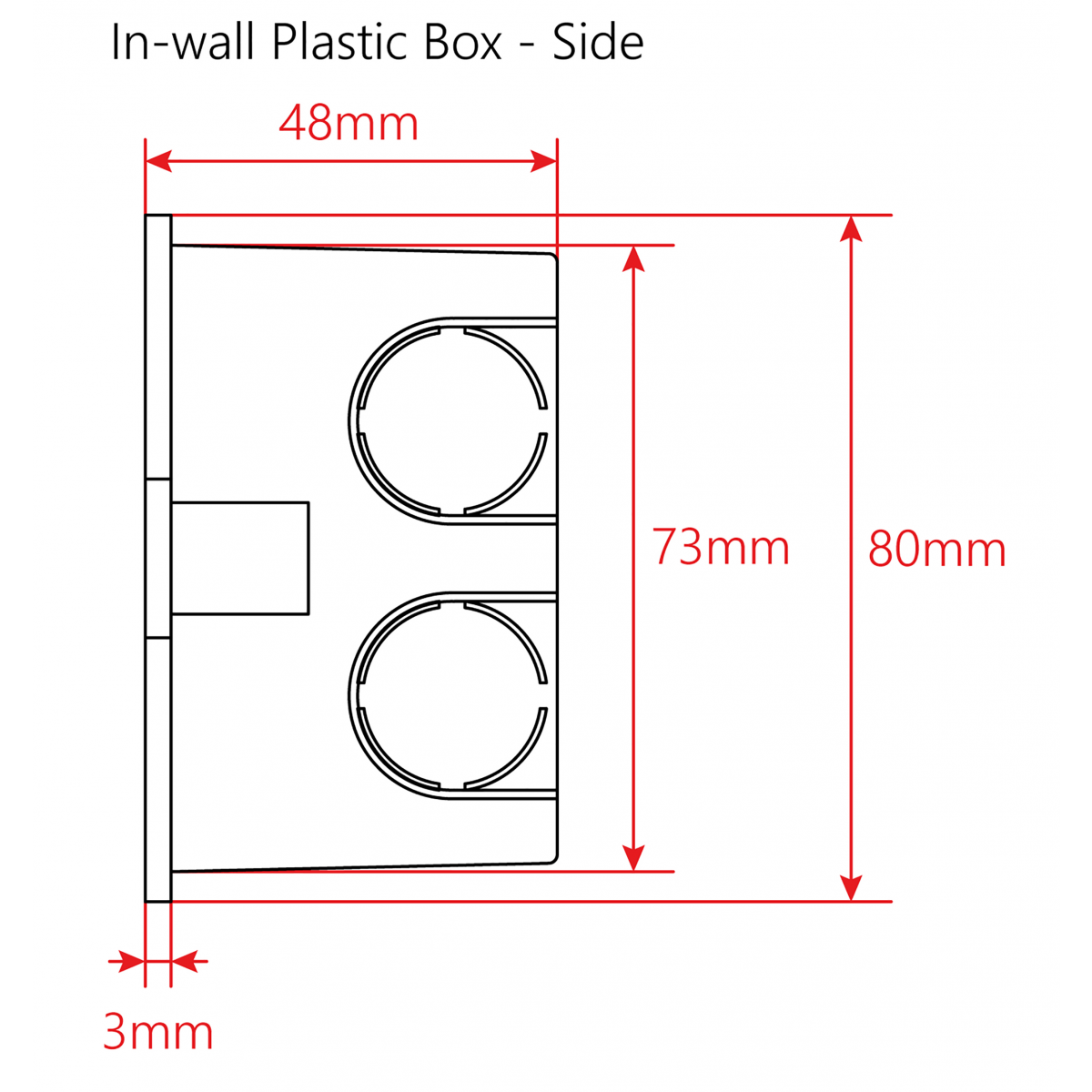

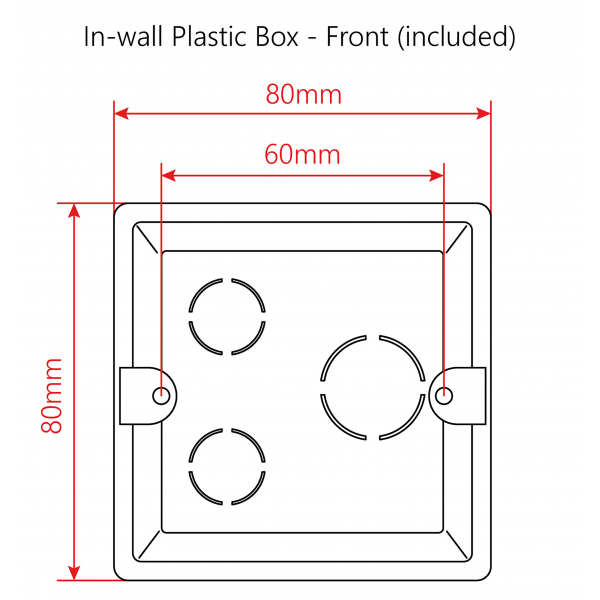

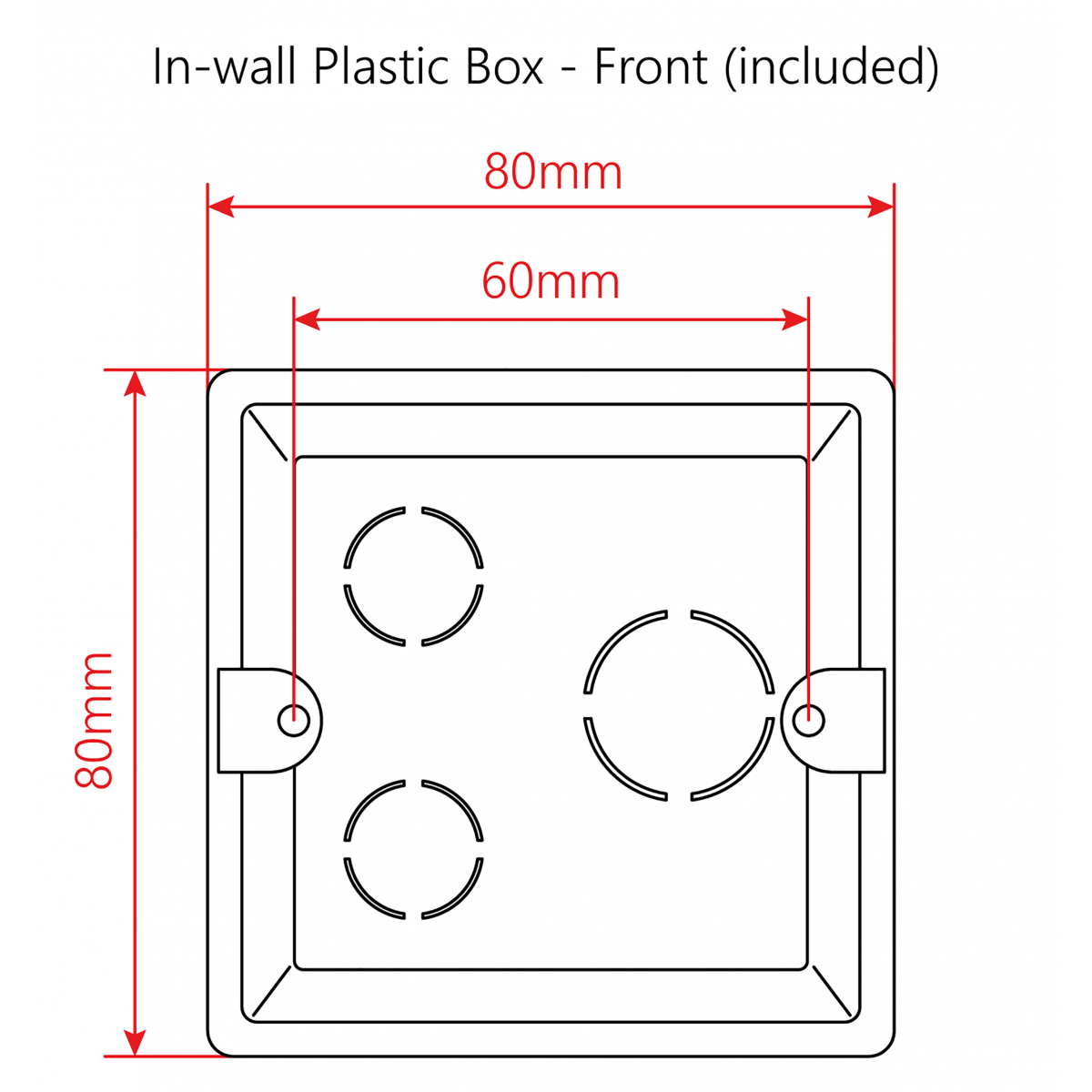

In-Wall Mount Box 80 x 80 x 48 mm (Included) - 3.15 x 3.15 x 1.89 in
Front Cover White (Included)

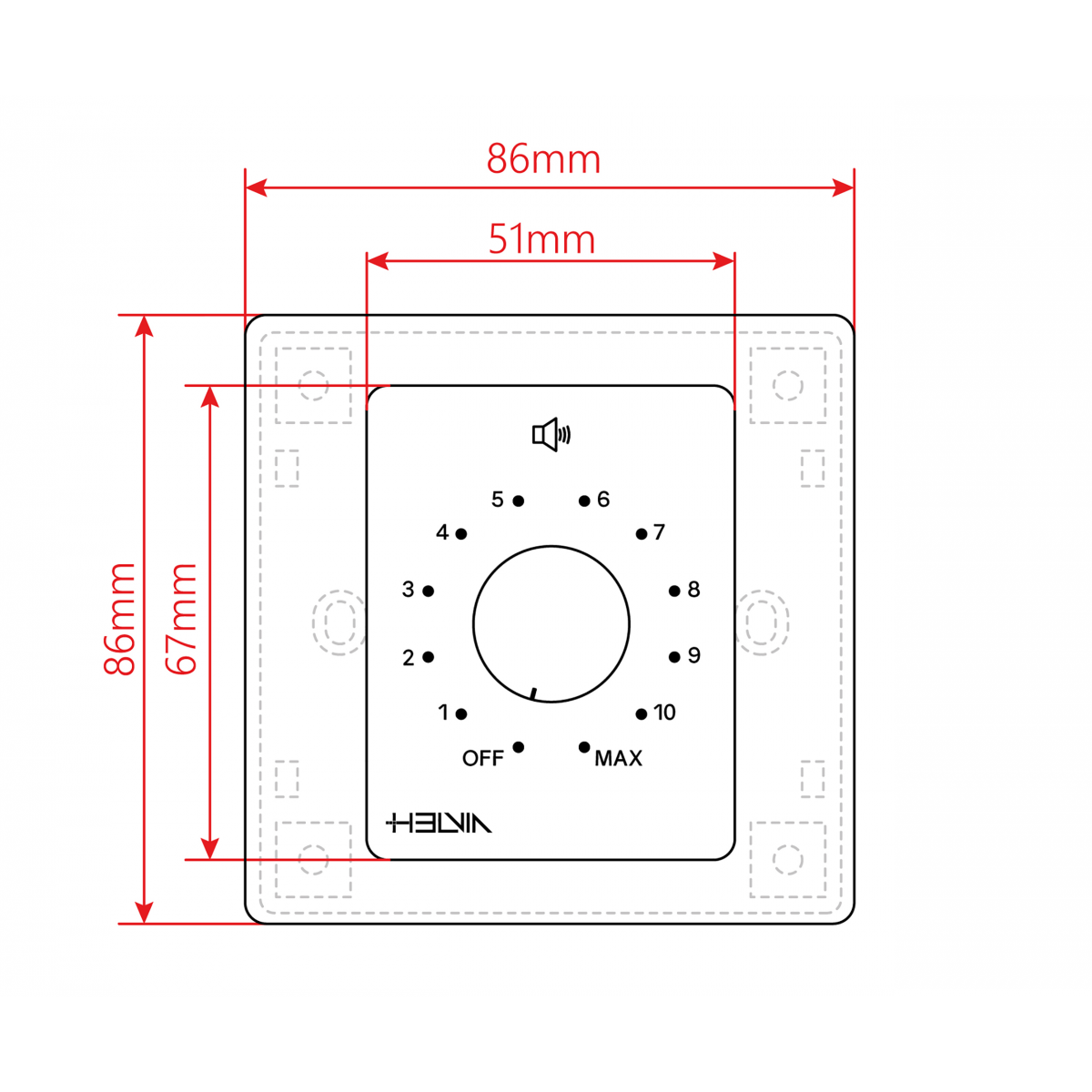

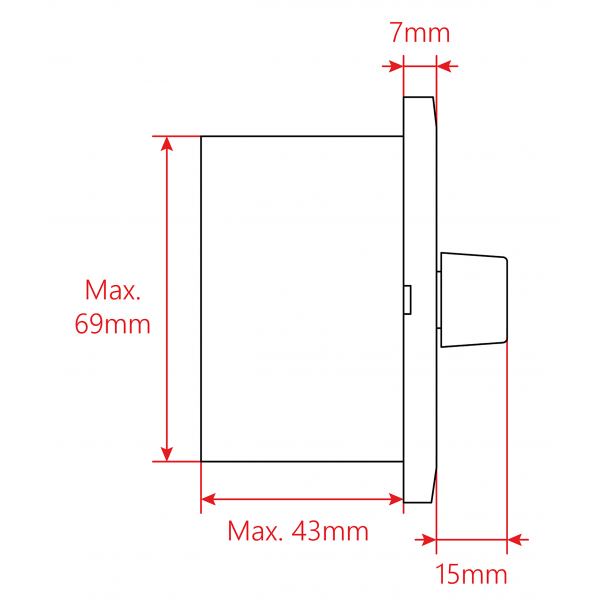

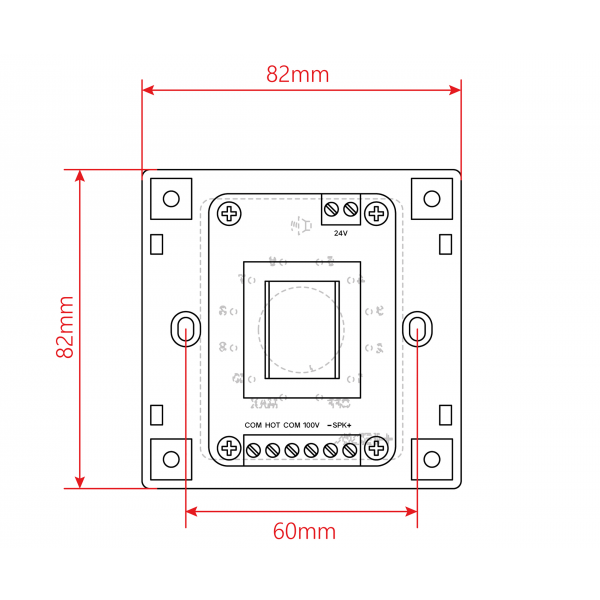

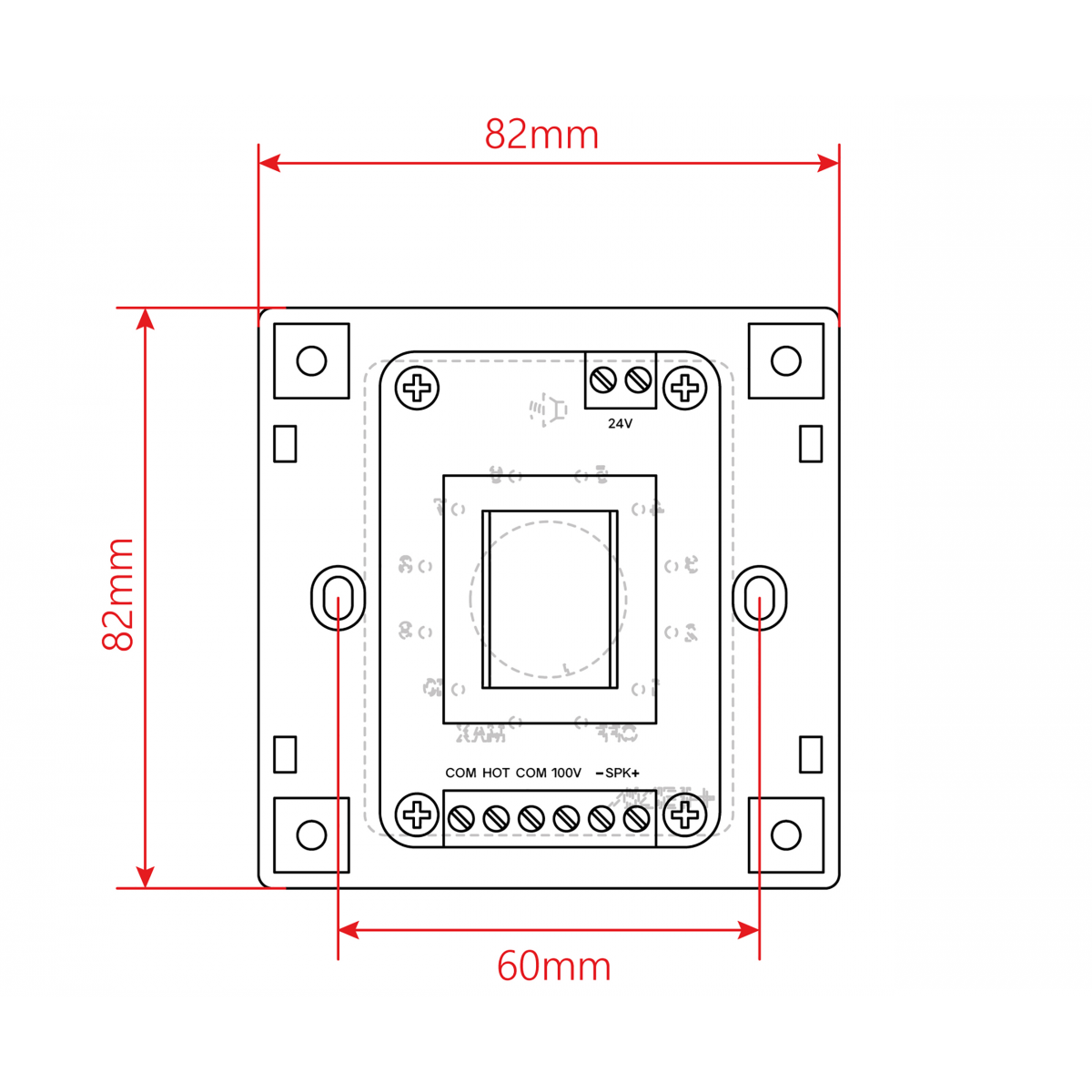

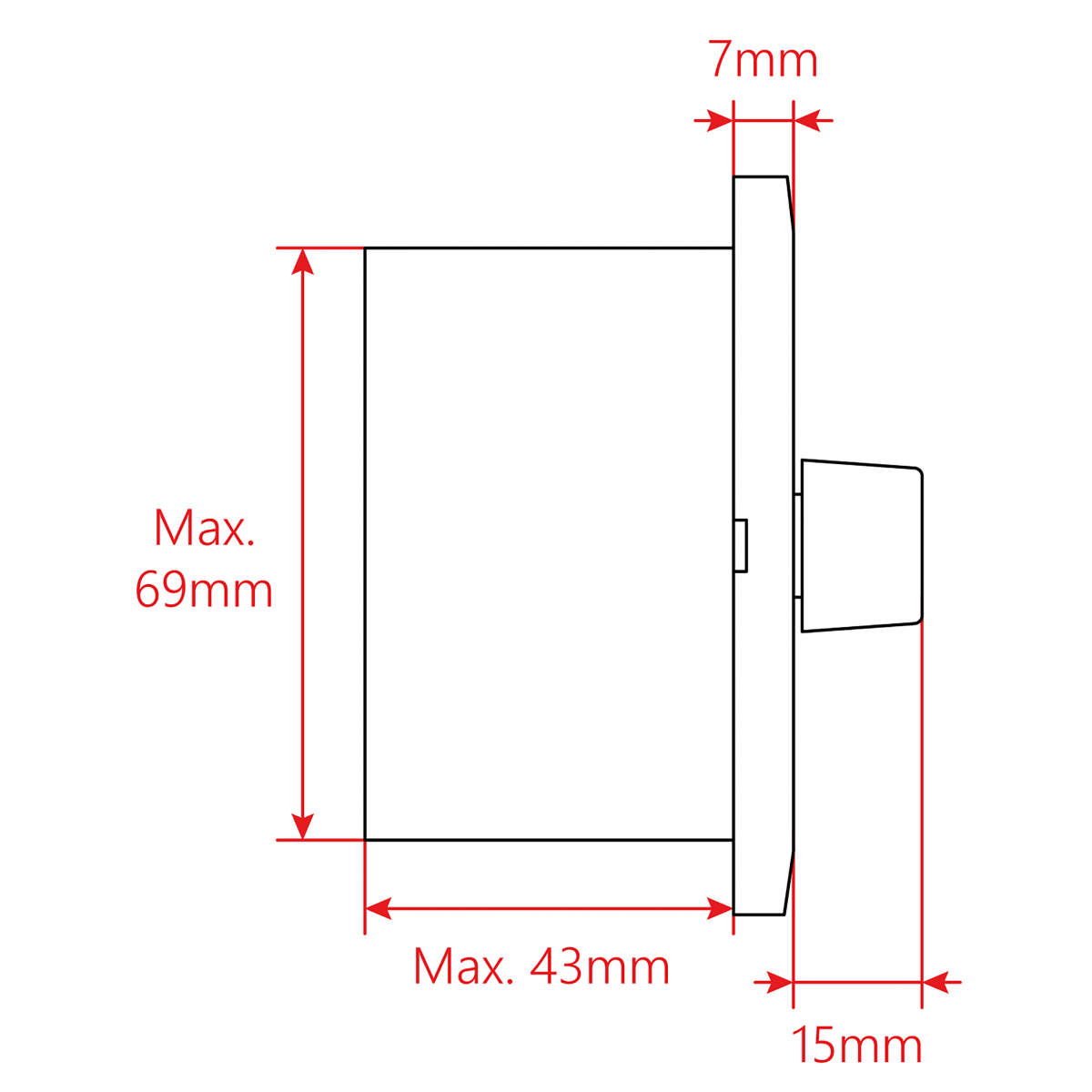

Dimensions 82 x 43 (max.) x 82 mm - 3.23 x 1.7 (max.) x 3.23 in
Net Weight 170 g - 0.37 lbs.
Packing Size 87 x 45 x 87 mm - 3.4 x 1.8 x 3.4 in
Gross Weight 200 g - 0.44 lbs.
