GALA-520DW
Description

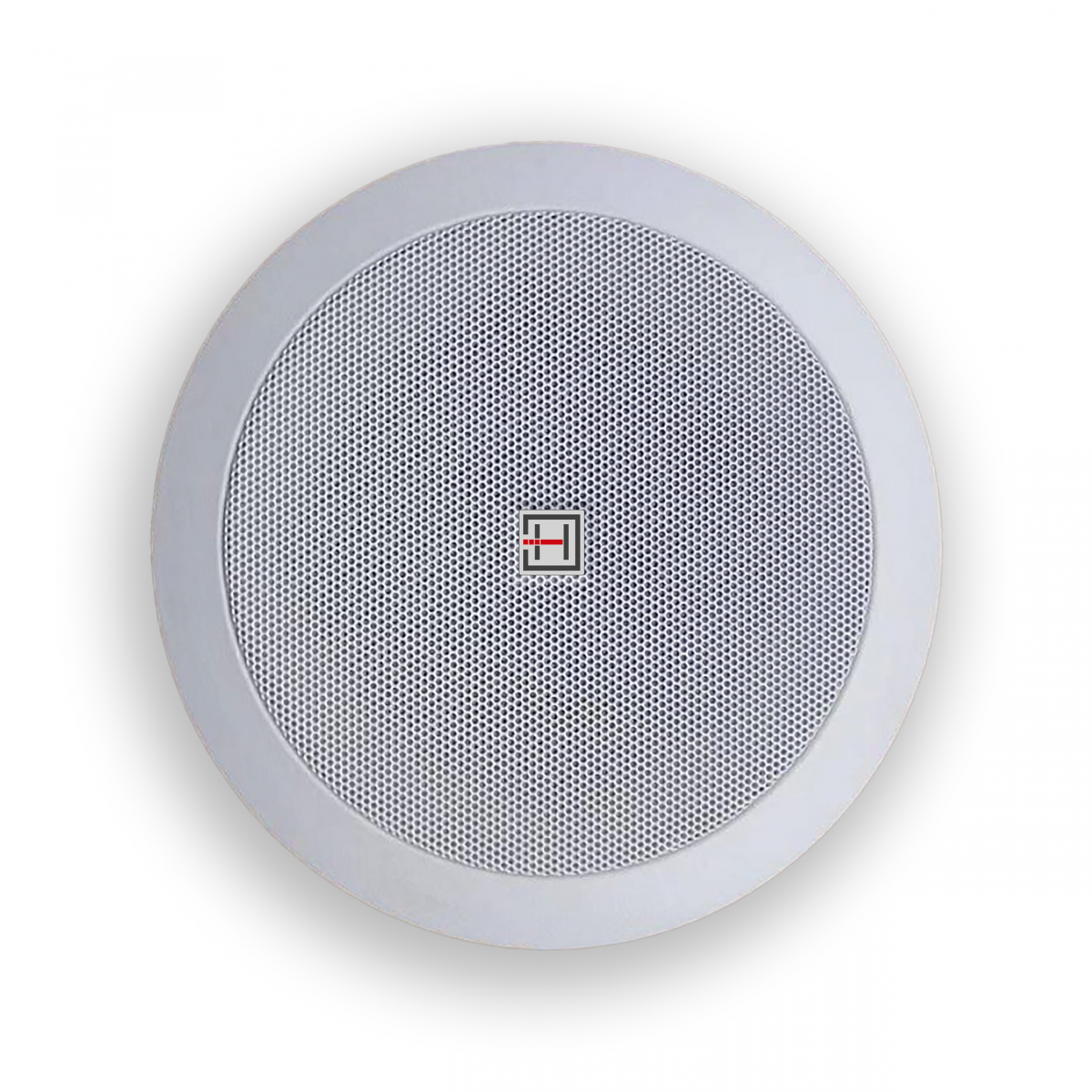

GALA-520DW offers elegant, reliable and versatile ceiling speakers with dual-cone woofer diameter of 5.25”, and powers from of 10W/20W at 100V. It can be used with standard 70/100V professional amplifiers, and is suitable for any application of music distribution in shops, restaurants, bars, offices, shopping malls, schools, etc.
GALA-520DW ceiling speaker fe... Read more
GALA-520DW offers elegant, reliable and versatile ceiling speakers with dual-cone woofer diameter of 5.25”, and powers from of 10W/20W at 100V. It can be used with standard 70/100V professional amplifiers, and is suitable for any application of music distribution in shops, restaurants, bars, offices, shopping malls, schools, etc.

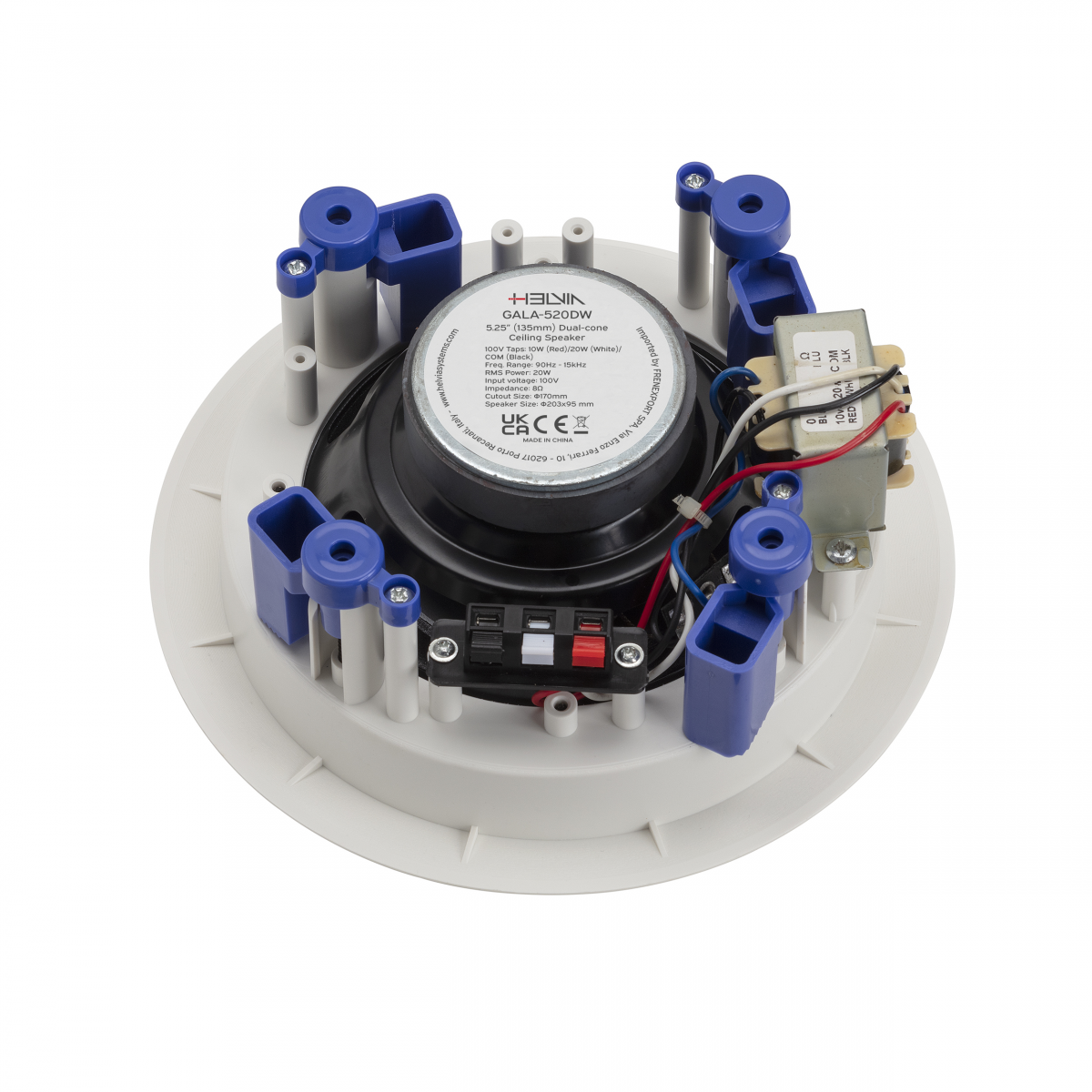

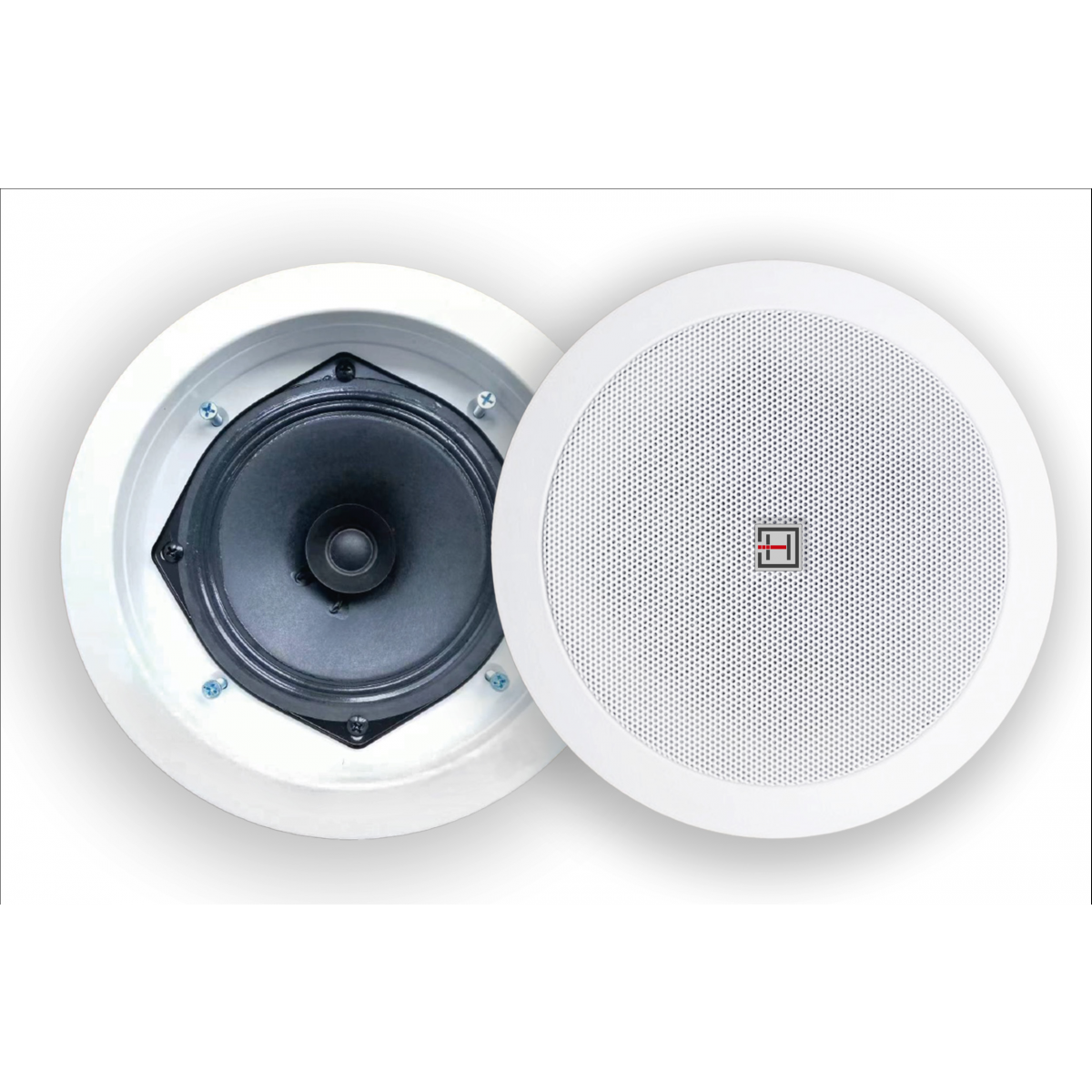

GALA-520DW ceiling speaker feature high quality ABS frame, aluminum grille, and quick-fit mechanism, to make installation very easy and fast. The built-in line transformers allow the use with 70/100V lines, and offer two power taps (10W, 20W) to better adapt to different speaker arrangement and amplifier powers. They come in white color, but can be painted in any color.
Read lessHighlights
Product details
| Dual-Cone Loudspeaker | |
| 5.25” Woofer Diameter | |
| 20W RMS Power | |
| Built-in 70/100V Line Transformer | |
| 10W – 20W @100V Power Taps | |
| Quick Mounting System | |
| Paintable Grille and Frame |
| General Dimension | Ø203X95mm |
| Woofer Size | 5.25” (35mm) |
| Transducer | Dual-Cone Woofer |
| Frequency-Range 90Hz-15KHz | |
| Sensitivity (1W/1M) | 90dB |
| Rated Power (RMS) | 20W |
| Rated Impendence | 8 ohms |
| Line Transformer | 20W - 10W @ 100V |
| Cutout Diameter | Ø170 mm |
